Components [07/2020 - ]

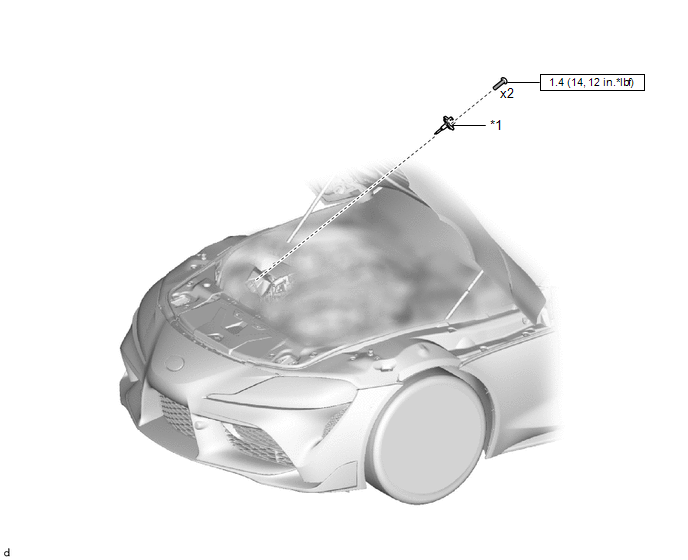

Fig 1: Mass Air Flow Meter Replacement Components With Torque Specifications [07/2020 - ]
GTY995116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 INTAKE MASS AIR FLOW METER SUB-ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
