Components [07/2020 - ]

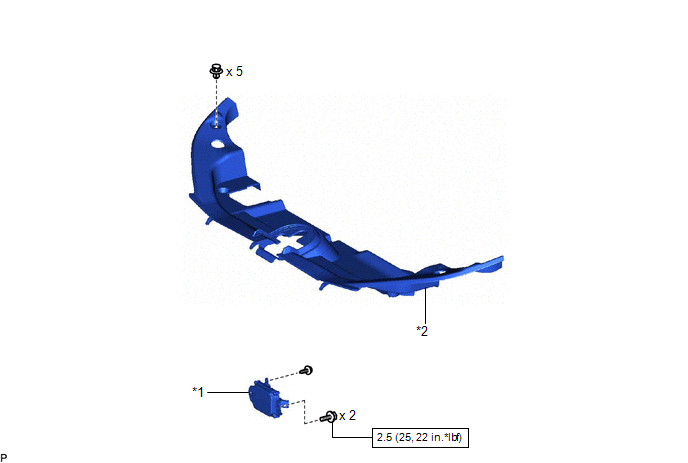

Fig 1: Millimeter Wave Radar Sensor Replacement Components With Torque Specifications
GTY988334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 MILLIMETER WAVE RADAR SENSOR ASSEMBLY *2 RADIATOR SUPPORT OPENING COVER
N.m (kgf.cm, ft./lbf): Specified torque - -
