Removal [12/2018 - 07/2020]: Procedure
- PRECAUTION NOTE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
Refer to PRECAUTION [12/2018 - 08/2019] , or refer to PRECAUTION [08/2019 - ]
- REMOVE BATTERY STATE SENSOR ASSEMBLY

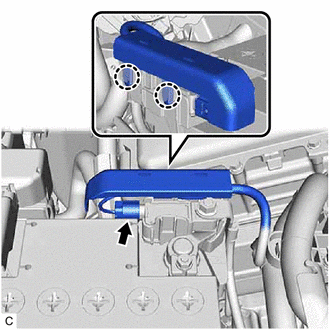

- Disengage the 2 claws and disconnect the wire harness from the battery current sensor holder.
- Disconnect the battery state sensor assembly connector.

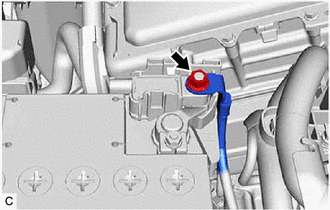

- Remove the nut and disconnect the engine wire from the battery state sensor assembly.NOTE:
When disconnecting the engine wire, some systems need to be initialized after the engine wire is reconnected.
Refer to INITIALIZATION [12/2018 - 08/2019] , or refer to INITIALIZATION [08/2019 - 07/2020]

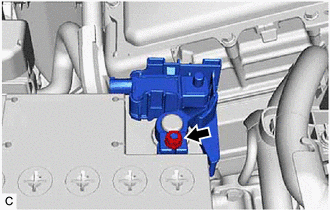

- Loosen the nut and remove the battery state sensor assembly from the auxiliary battery.

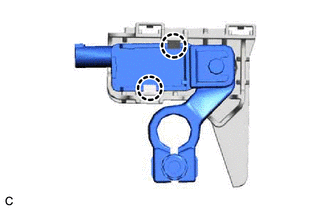

- Disengage the 2 claws to remove the battery state sensor assembly from the battery current sensor holder.
- Disengage the 2 claws and disconnect the wire harness from the battery current sensor holder.
