Installation [12/2019 - 10/2022]: Procedure

  1. INSTALL DOWNHILL ASSIST CONTROL SWITCH

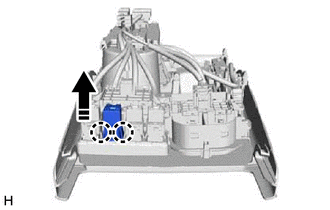

    1. Install the downhill assist control switch to the console panel sub-assembly with the 2 claws as shown in the illustration.
      GTY869665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Connect the connector to the downhill assist control switch.
  2. INSTALL CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9

  3. INSTALL FRONT CONSOLE BOX COVER

    Refer to PROCEDURE - Step 11

  4. INSTALL NO. 2 CONSOLE BOX CUSHION

    Refer to PROCEDURE - Step 13

  5. INSTALL CONSOLE BOX CUSHION

    Refer to PROCEDURE - Step 12

  6. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1
