Caution / Notice / Hint

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during air fuel ratio sensor removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Air fuel ratio sensor (for bank 1 sensor 1) Air fuel ratio sensor (for bank 1 sensor 2) Air fuel ratio sensor (for bank 2 sensor 1) Air fuel ratio sensor (for bank 2 sensor 2) Gas leaks from exhaust system	Inspection after repair	Poor idle, etc. Engine start function, etc.	Refer to INITIALIZATION [09/2022 - 09/2024] , or refer to INITIALIZATION [09/2024 - ]

COMPONENTS (REMOVAL)

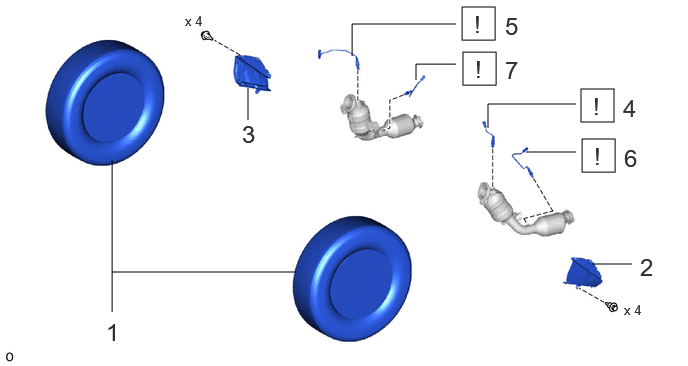

Fig 1: Air Fuel Ratio Sensor Removal Components

Procedure		Part Name Code
1	FRONT WHEEL	-	-	-	-
2	FRONT FENDER APRON TRIM PACKING D	53785B	-	-	-
3	FRONT FENDER APRON TRIM PACKING C	53784	-	-	-
4	AIR FUEL RATIO SENSOR	89467B	See step 4	-	-
5	NO. 2 AIR FUEL RATIO SENSOR	89467C	See step 5	-	-
6	NO. 3 AIR FUEL RATIO SENSOR	89467D	See step 6	-	-
7	NO. 4 AIR FUEL RATIO SENSOR	89467E	See step 7	-	-
