Vehicle Summon Mode Description And Function

Summon mode (SM) is a driver assistance system that automatically moves the vehicle to a location from a parking spot via the C-App. The vehicle will automatically leave its parking spot and navigate around objects to reach the user when the user, who must be within a radius of 65m (6m for the EU), requests it by means of a remote button on the mobile app. The user can also send the vehicle to a location within a radius of 65m (6m for the EU) by selecting a location on the map on the mobile app ("Go to target"). However, a clear line of sight must be maintained between you and the vehicle to ensure that you can always closely monitor the vehicle and its surroundings.

NOTE: For EU markets: This functionality is limited by UN Regulations to be activated only within a 6m radius of the vehicle.

Components:

Summon by "come to me" mode
Summon by "go to target" mode

Technical Description:

If you are within 65 m (6 m for EU) of the vehicle, you can enable and use summon mode via C-App on your mobile device. C-App provides two modes to start the summon mode:

Come to me
Go to target

Operation:

To start Summon in "come to me" mode:

Courtesy of VINFAST, LLC

Courtesy of VINFAST, LLC

Open C-app then select summon mode
Once the summon mode has been activated, select "come to me" mode

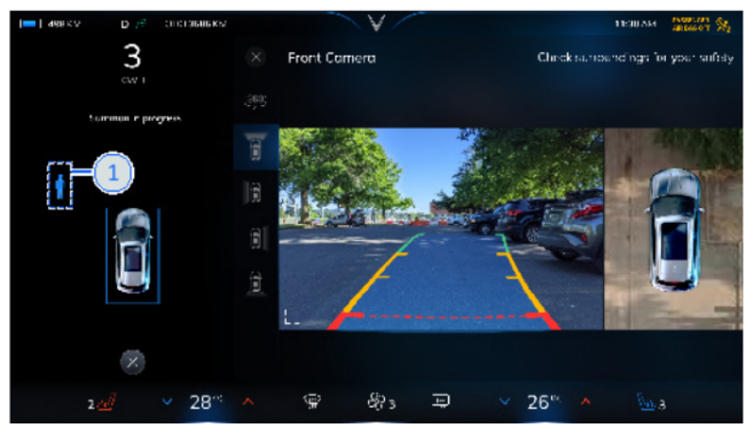

The system will start to track your location with the help of GPS (1)
The vehicle will then start to move in your direction
Once the vehicle reaches you, it stops and shifts into park

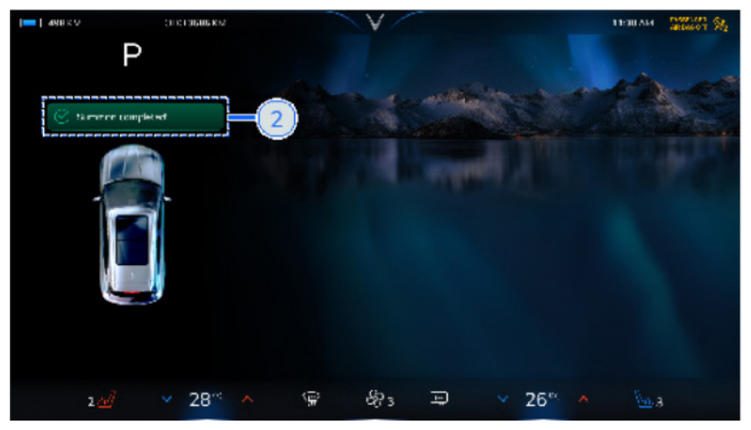

A success notification is shown on the HMI screen after completion (2)

To start summon in "go to target" mode:

Courtesy of VINFAST, LLC

Open C-app then select summon mode
Once the summon mode has been activated, select "go to target" mode
Choose a location on the map and then system will mark the destination (1)
The vehicle will then start to move towards the destination
Once the vehicle reaches the destination, it stops and shifts into park
A success notification is shown on the HMI screen after completion

Pausing and canceling summon mode:

Summon mode may be automatically canceled for any of the following reasons:

Vehicle speed is above 30kph.
Some system failure occurs.
When road gradient is too large.
Either the gear position, steering wheel or accelerator is interfered with.
Too many pauses.
System becomes disconnected from C-App.

Limitations:

Summon mode might not work properly in the following situations:

Poor weather conditions.
Sensors and cameras are dirty, damaged or obstructed by mud, ice or snow.
The driving path is not flat; the summon feature is designed to operate on flat roads.
Poor Internet connection.
The summon process is interrupted by obstacles on the road, for instance concrete edges etc.

WARNING: Do not rely completely on the system. Avoid using summon mode on public roads. Do not use summon mode on rough roads. Summon mode can only be used on flat roads. It is the driver's responsibility to operate summon mode properly. Always pay attention to the vehicle and its surroundings. It can be dangerous if the vehicle is hit by obstacles on roads. Always keep the sensors and cameras clean, the system will not work properly if the sensors and cameras are not clean. Summon mode operation depends on sensors, cameras, cellular data connection and GPS data etc. Make sure everything is in proper working condition before using the feature. Summon mode is intended for use only on parking lots and driveways on private properties, where the surrounding area is familiar and predictable. When the vehicle is parked in narrow parking spots, the ability of the cameras and sensors to detect obstacles in surroundings diminishes. In such situations, use of the summon mode is not recommended. The system will not detect potholes, gutters or drains that are below ground level.
