Data Flow

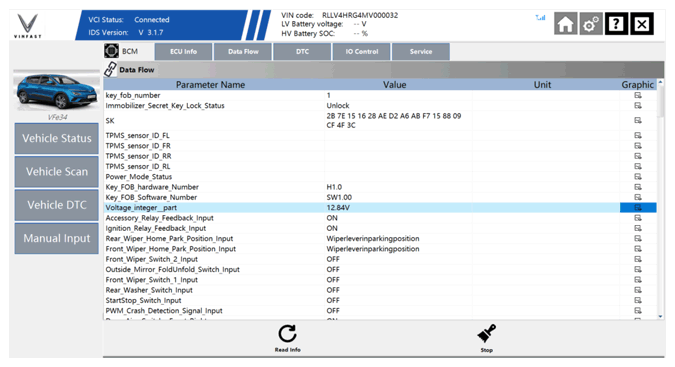

Parameters that can be measured will be displayed on this page. Use the 'Read Info' button to start the data flow for all parameters available to be measured from this ECU.
If supported by the ECU, a graphic option is available to show one measured parameter value on a graph by clicking on the corresponding icon within the Graphic column:

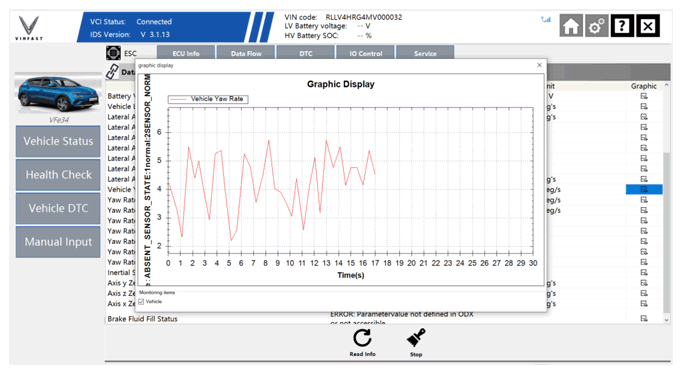

This will show the last 30 seconds of data that is being measured from the ECU like below:
NOTE:
Only 1 parameter may be shown in a graphic display at a time.
Use the 'X' located at the top right of the window to close this graphic display.
You can stop measuring parameters using the 'Stop' button.
