Vehicle DTC: Notes
Diagnostic trouble codes for all available ECUs can be read on this page.

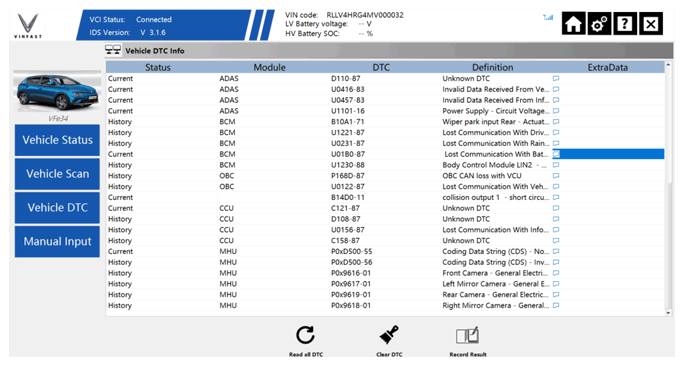

Use 'Read all DTC' to communicate with all ECUs and find all active trouble codes. As this action is communicating with all ECUs please be patient while all diagnostic data is collected.

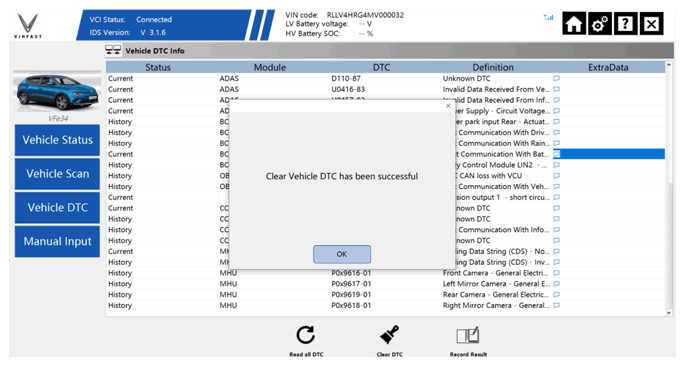

Using 'Clear DTC' will clear all DTCs for all available ECUs and also clear the DTC page listing.
After clear DTC is successful and the OK button is clicked, IDS will read all DTCs from the vehicle to show which DTCs are still present in any ECU modules in the vehicle.
