Cruise Assist Description And Function (Including Speed Adaption And Traffic Sign Recognition): Notes
Cruise Assist, Speed Adaptation und Traffic Sign Recognition System Components:
- Radar, yaw rate, lateral acceleration, wheel speed and steering angle sensor
- Windshield camera with traffic sign recognition
- Control unit to detect own vehicle movement
- Object recognition and classification
- Distance control
- Control units for motor, transmission and ESP with actuators
- Multifunction steering wheel control unit
- Head-up display
Technical Description:

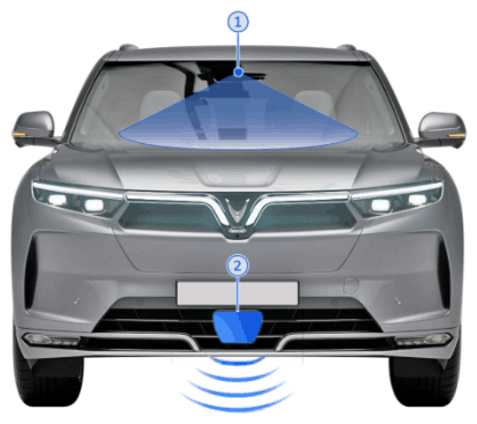

The radar sensor is mounted in the center of the lower front grille.
The system is a mid-range radar, and is linked with the ADAS module via a private CAN bus. It is necessary for driver assistance functions such as collision avoidance and speed adaptation.

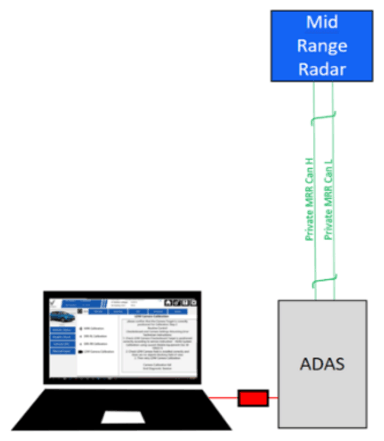

A private CAN bus is used for communication between the ADAS ECU and front radar because of transfer speed and safety. Diagnostic trouble codes can be read out via the ADAS ECU.
The windshield camera (SCAM) also uses a private FD CAN to communicate with the ADAS module.
They are powered by clamp 15, which is controlled by the body control module BCM.
