Wiper/Washer System Description And Function : Notes

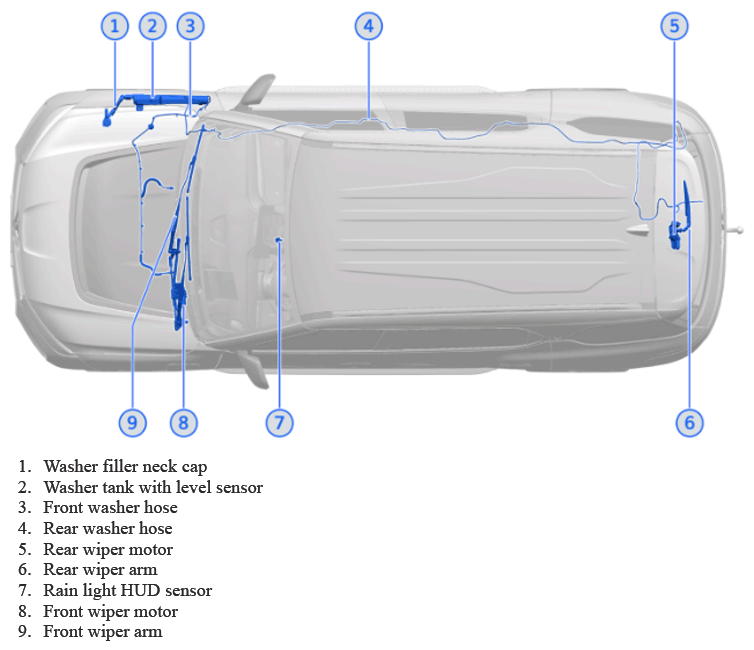

Wiper/Washer System Components:
Map Description automatically generated
Technical Description:
The construction type of the front wiper system is a tandem system.
The construction type of the rear wiper system is a single arm pendulum wiper system.
Washer fluid is sprayed onto the windshield and rear window when the driver operates the lever on the steering column beside the steering wheel. The windshield washer system is coupled with the wiper system by means of an electronic control unit. After the driver has initiated the spraying of the windshield, this is followed by automatic wiping at a set, fixed frequency.
