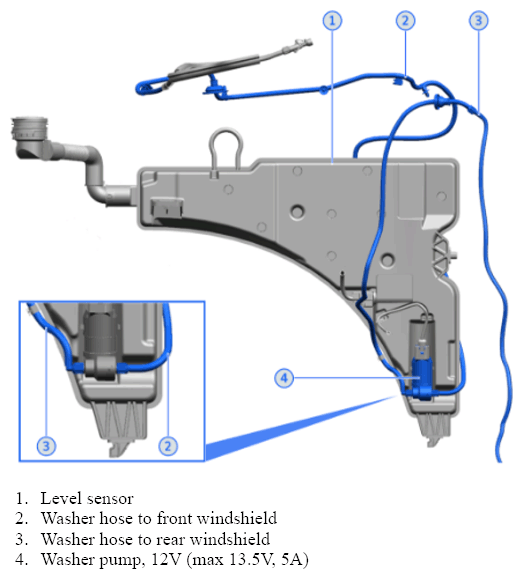

Washer System - Front
A picture containing car, parked, blue Description automatically generated
- Washer tank
- Filler neck
The washer tank is located behind the RH fender.
Washer fluid capacity not less than 5 l.
The pump is attached to the washer fluid tank and front wiring harness.
The pump can operate forwards or backwards, directing water to the front or rear washer hoses.
The level sensor is positioned approximately 1 l above the pump position.
