Vinfast Sync User Interface

The Vinfast Sync  application ensures that the VinFast Diagnostics application is updated regularly and started correctly.

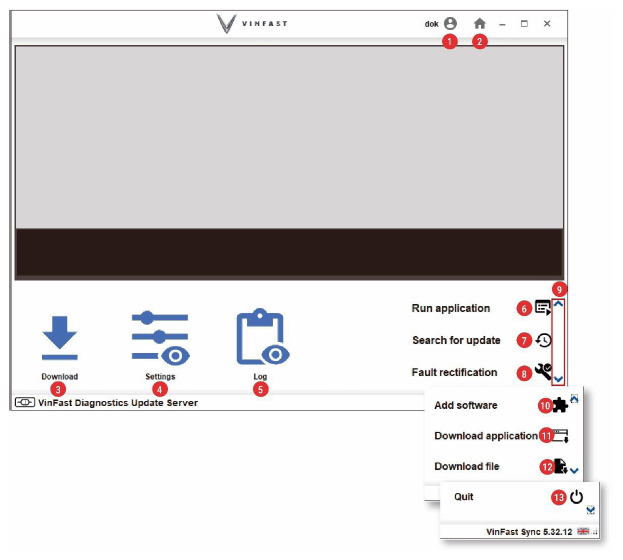

G16022903Courtesy of VINFAST, LLC

Functionality of the main buttons from the Vinfast Sync  user interface:

  1. Login button. Username and Password needed to get access to the server
  2. Home button, takes you to the main menu.

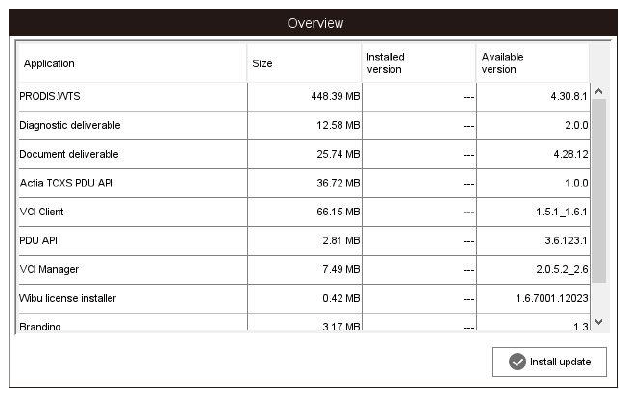

  3. Download  button, shows a list of data that need to be updated and/or installed, see
    G16022904Courtesy of VINFAST, LLC
  4. Settings  button for selecting the operation mode and the UI-language.
  5. Log  button, shows a table of installed documents.
  6. Run application  , starts the PRODIS.WTS  application.
  7. Search for an update  . Starts a search on the server for updates.
  8. Fault rectification  . Assistant to correct faults within the Vinfast Sync
  9. Scroll bar to display more functions.
  10. Add software  , for adding software
  11. Download applications  , for downloading more applications
  12. Download files  , for downloading files
  13. Quit  , for exiting Vinfast Sync
