Lane Changing Assist (On-Ramp/Off-Ramp): Description And Function
>>
ADAS System Schematic
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

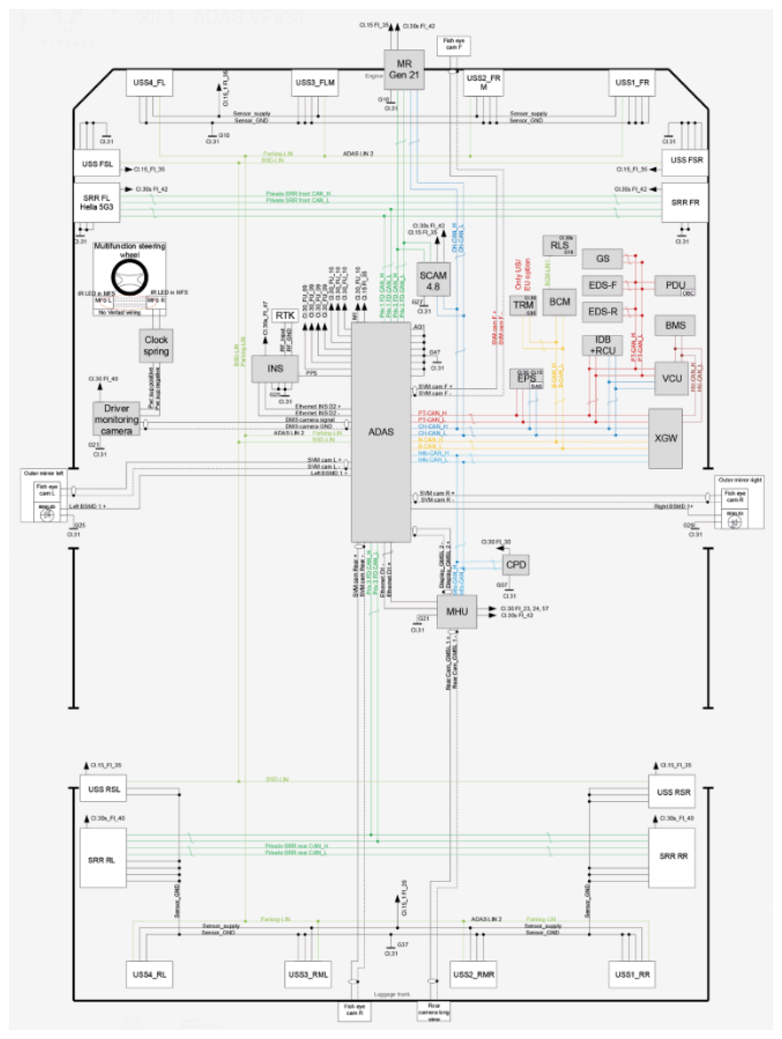

ADAS System Schematic
Courtesy of VINFAST, LLC
Courtesy of VINFAST, LLC
