Multimedia Head Unit: Overview Functions

Essential Controls Entertainment ECU-related Features 1
  • Climate/Seat Climate Control
  • Tailgates Control
  • ORVM Control
  • Charging port open/close
  • Parking Light Control
  • Fog Light Control
  • Footwell Light Control
  • Electric Handbrake Control
  • Media, Radio
  • Navigation
  • BT Phone
  • Smartphone Links
  • RSE Services
  • Vehicle Software
  • Emergency Calls
  • Connected Features
  • Emergency Call Settings
  • Screen Settings
  • Sound Settings
  • Connectivity Settings
  • Phone Projection Settings
  • General Settings
  • EV Vehicle Features
  • FOTA, Software-Update
  • Smart Features
  • Wireless Charger Settings
  • Driver Assistance Settings
  • Seat Settings
  • Wiper Settings
  • ORVM Settings
  • Door/Trunk Settings
  • Light Settings
  • HUD Settings
  • Key FOB Settings
  • Auto Highbeam Control
  • Headlamp Leveling Control
  • HUD Control
  • Driving Mode Control
  • Traction Mode Control
  • SVM/RVC

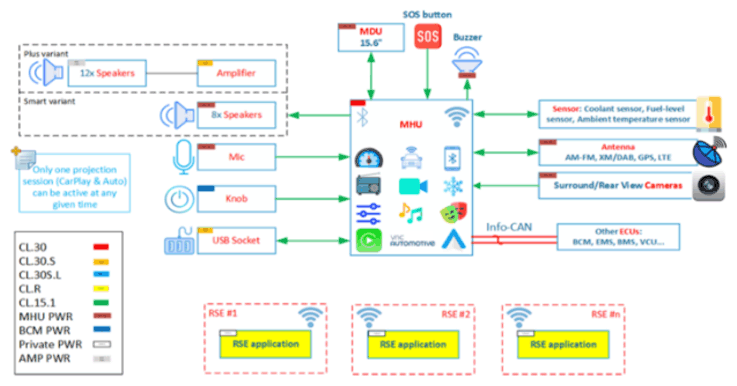

MHU Block Diagram:

G16025206Courtesy of VINFAST, LLC
