Front Dual USB Socket Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

1. Open the flap for the center console.

   Courtesy of VINFAST, LLC

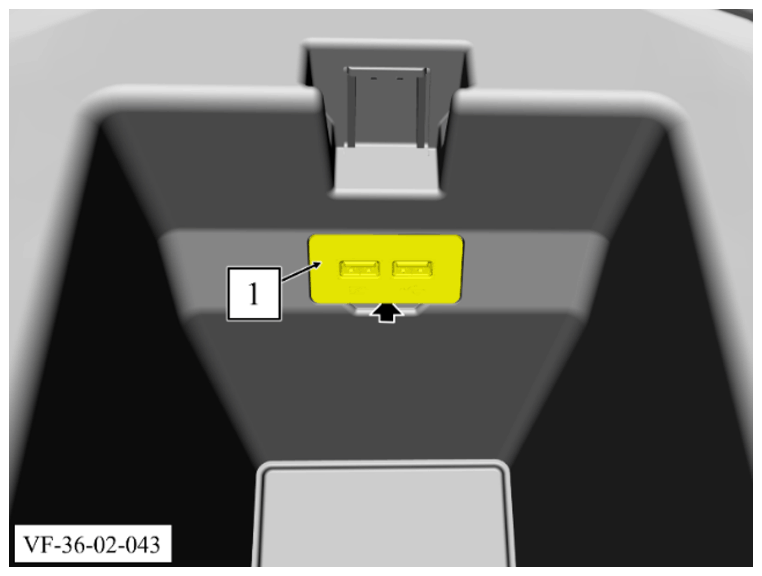

2. Remove front dual USB socket (1) using a suitable plastic wedge.

   Courtesy of VINFAST, LLC

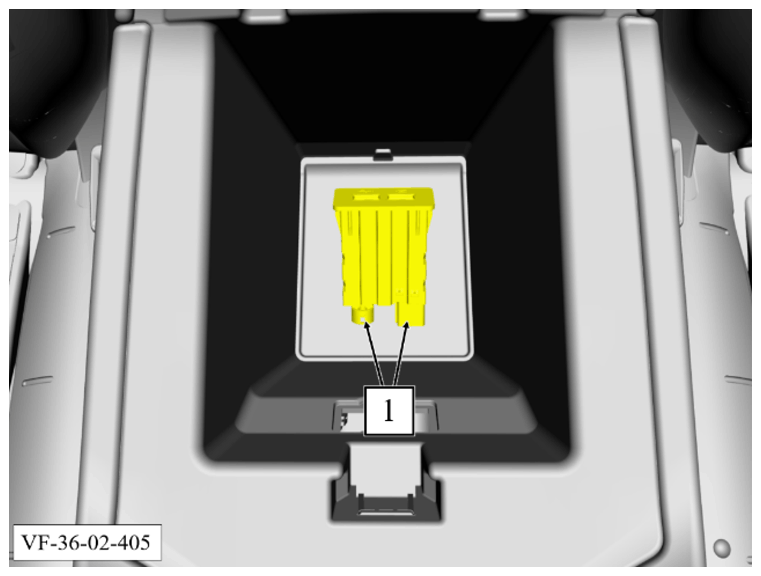

3. Disconnect the 2 electrical connectors (1).

Installation Procedure:

Courtesy of VINFAST, LLC

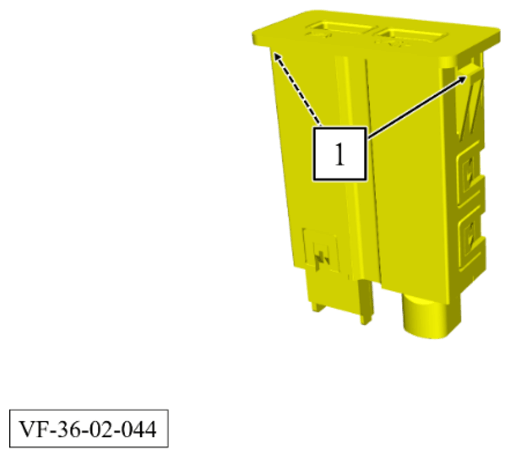

Installation note: Check both locking lugs (1) for damage.

1. Installation is the reverse of removal procedure.
