Three-Unit Regulators Only

Run generator at approximately twice the rated RPM. Connect a second battery parallel to a variable resistor. Increase the resistance until the voltage breaks away. Reading must cover the maximum current listed (see specifications).

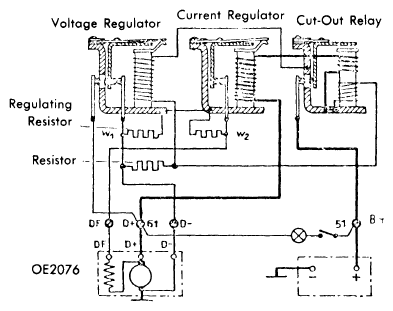

Fig 1: Three-Unit Regulator (Typical)
