Cooling System

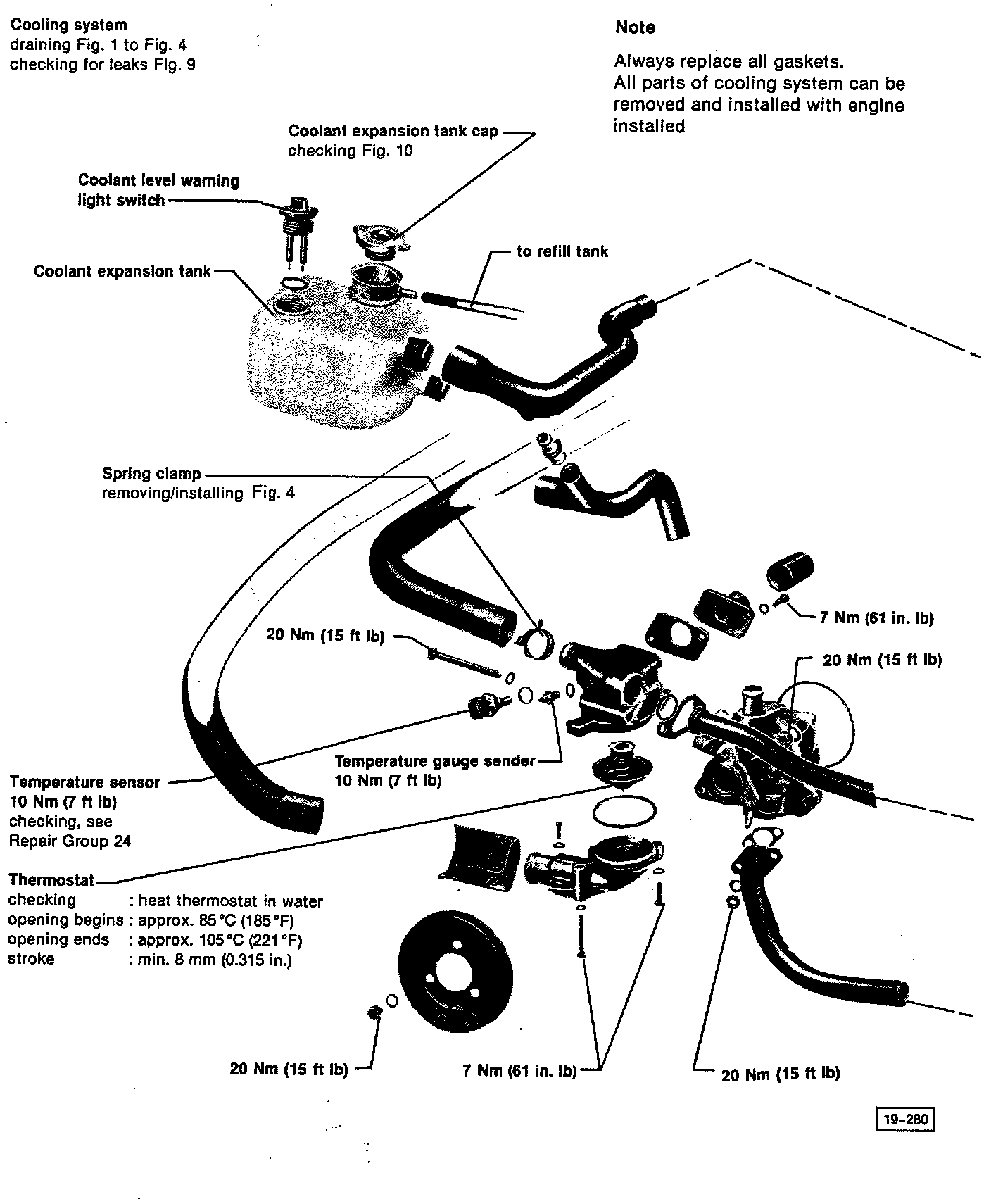

Cooling System Repair & Exploded View, Water Cooled:

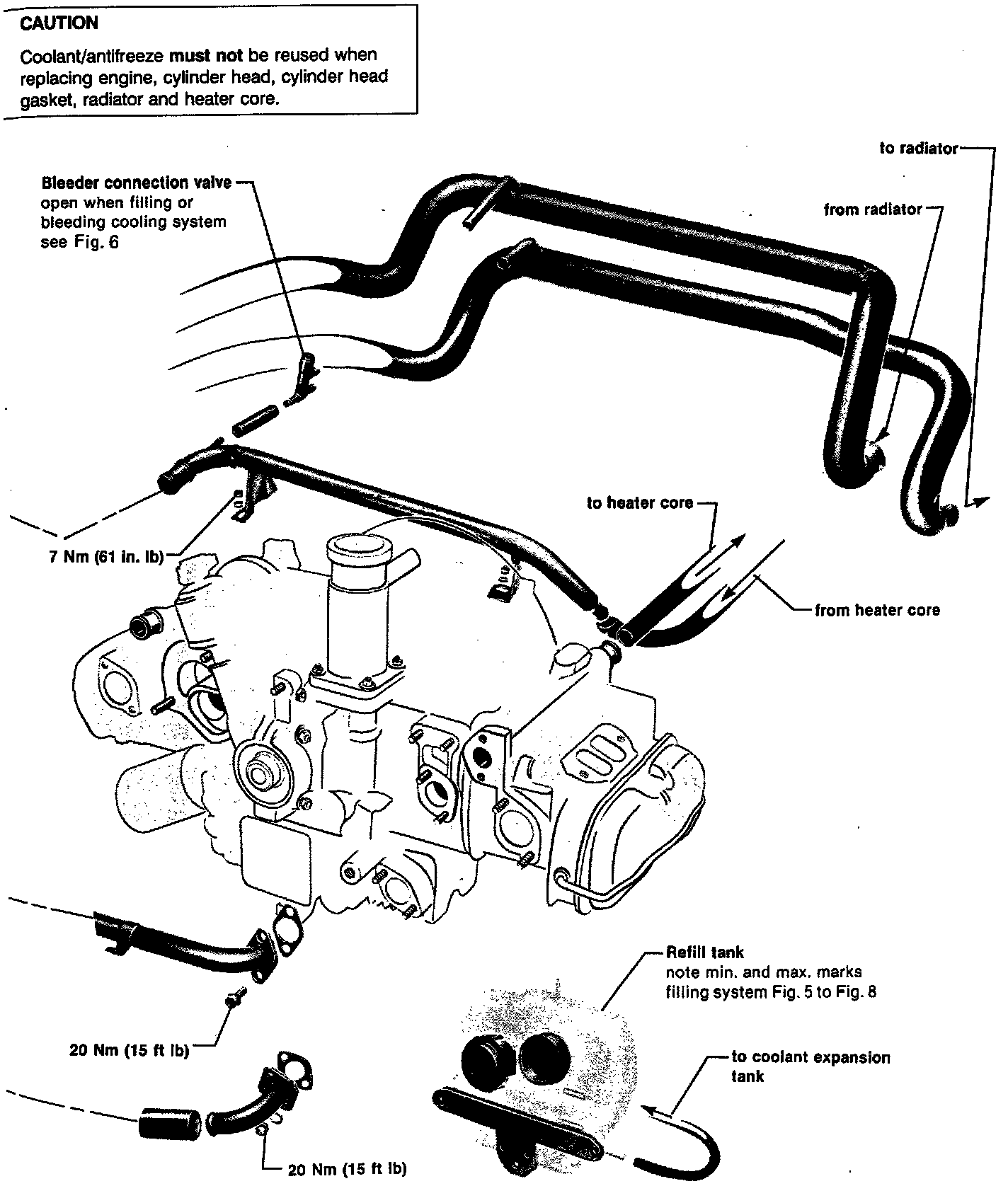

Cooling System Repair & Exploded View.:
