LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Volkswagen
>>
1985
>>
Vanagon F4-1915cc 1.9L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
System Component Layout
>>
Control Unit/Wire Harness
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

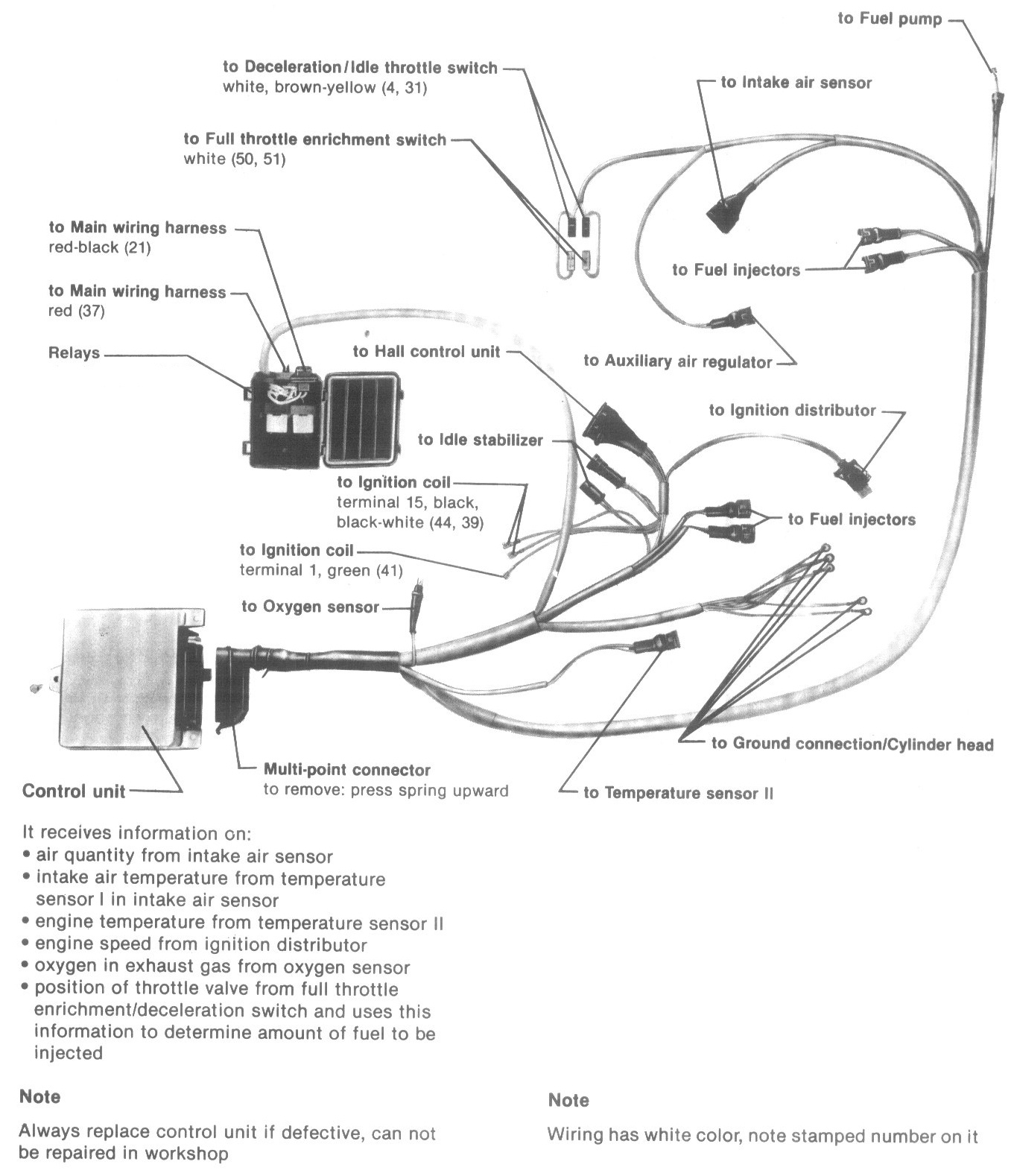

Control Unit/Wire Harness
