Control Units

CONTROL UNITS LOCATION

Component Location

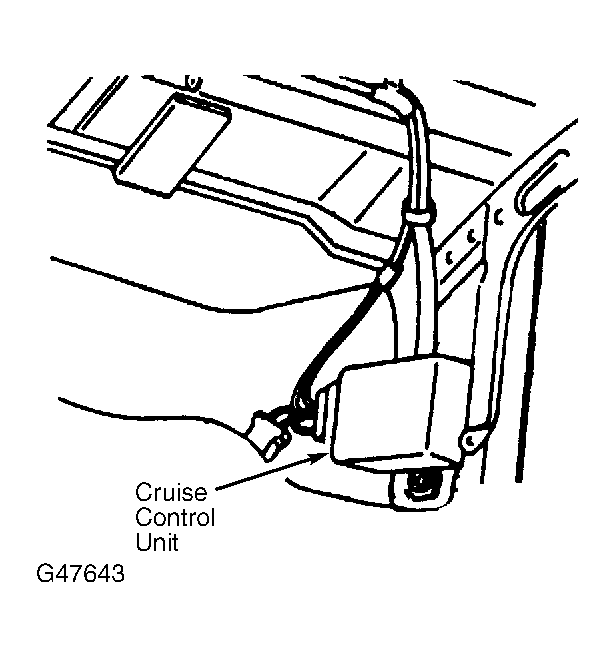

Cruise Control Unit Under right side of dash. See Figure .

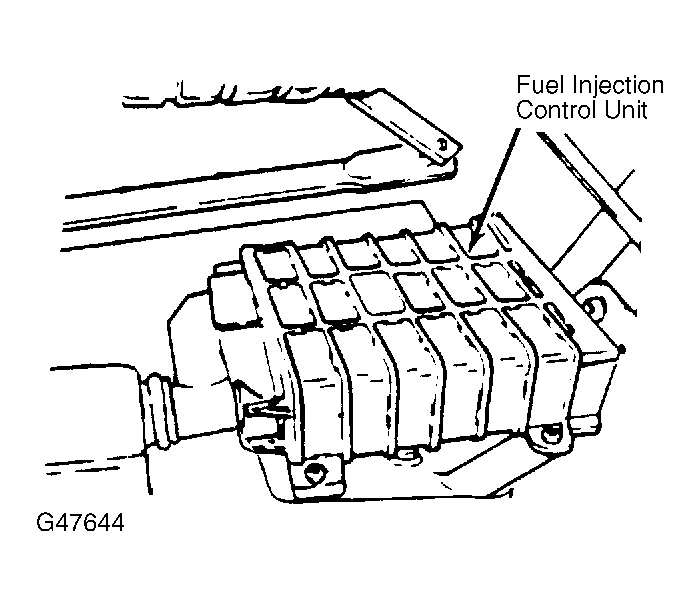

Fuel Injection Control Unit On left rear corner of engine compartment. See Figure .
Idle Stabilizer Control Unit On left rear corner of engine compartment.
Ignition Control Unit On left rear corner of engine compartment.
Oil Pressure Control Unit On back of instrument cluster.
