Cooling System

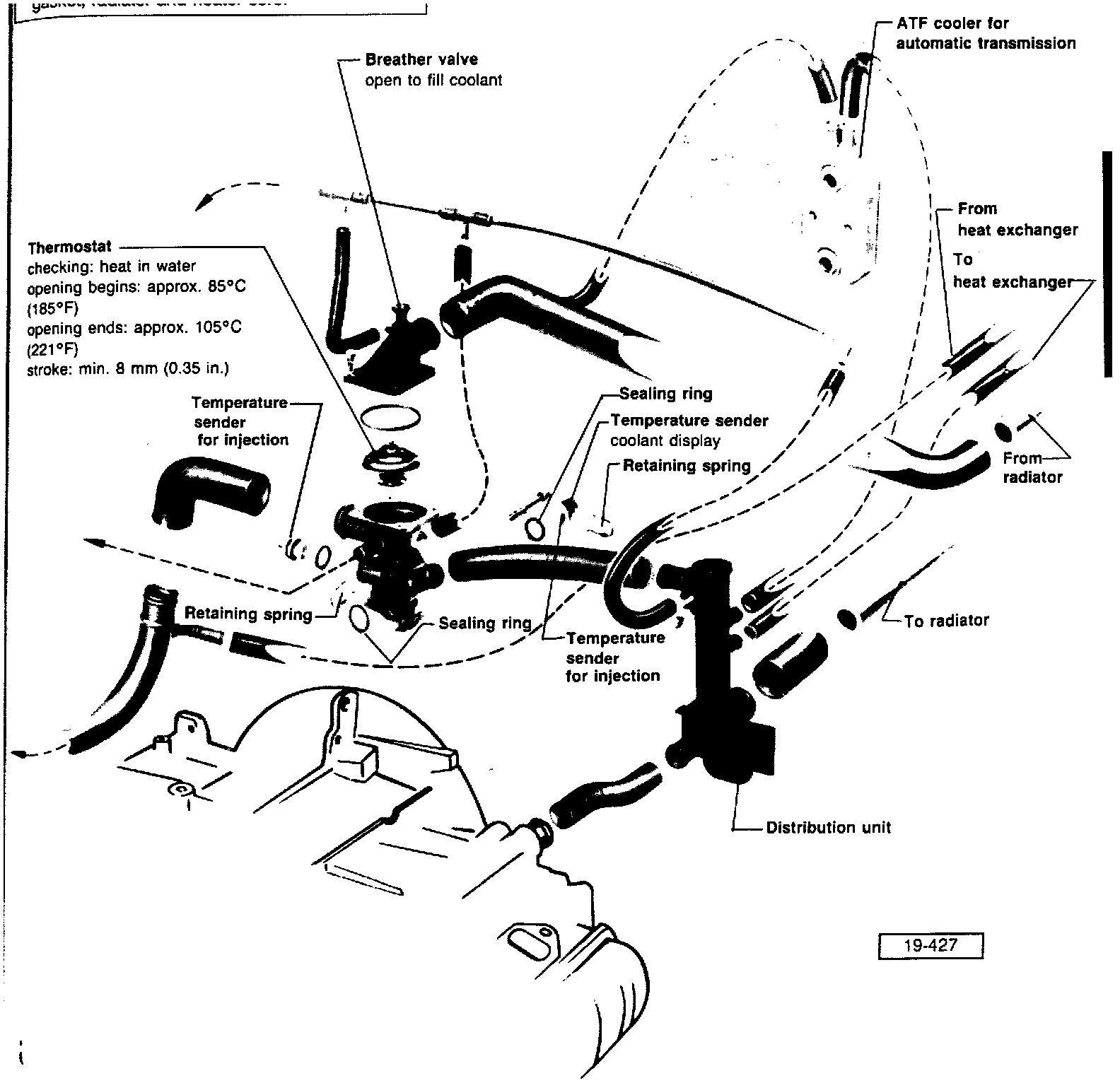

Cooling System Repair & Exploded View, Engine Compartment.:

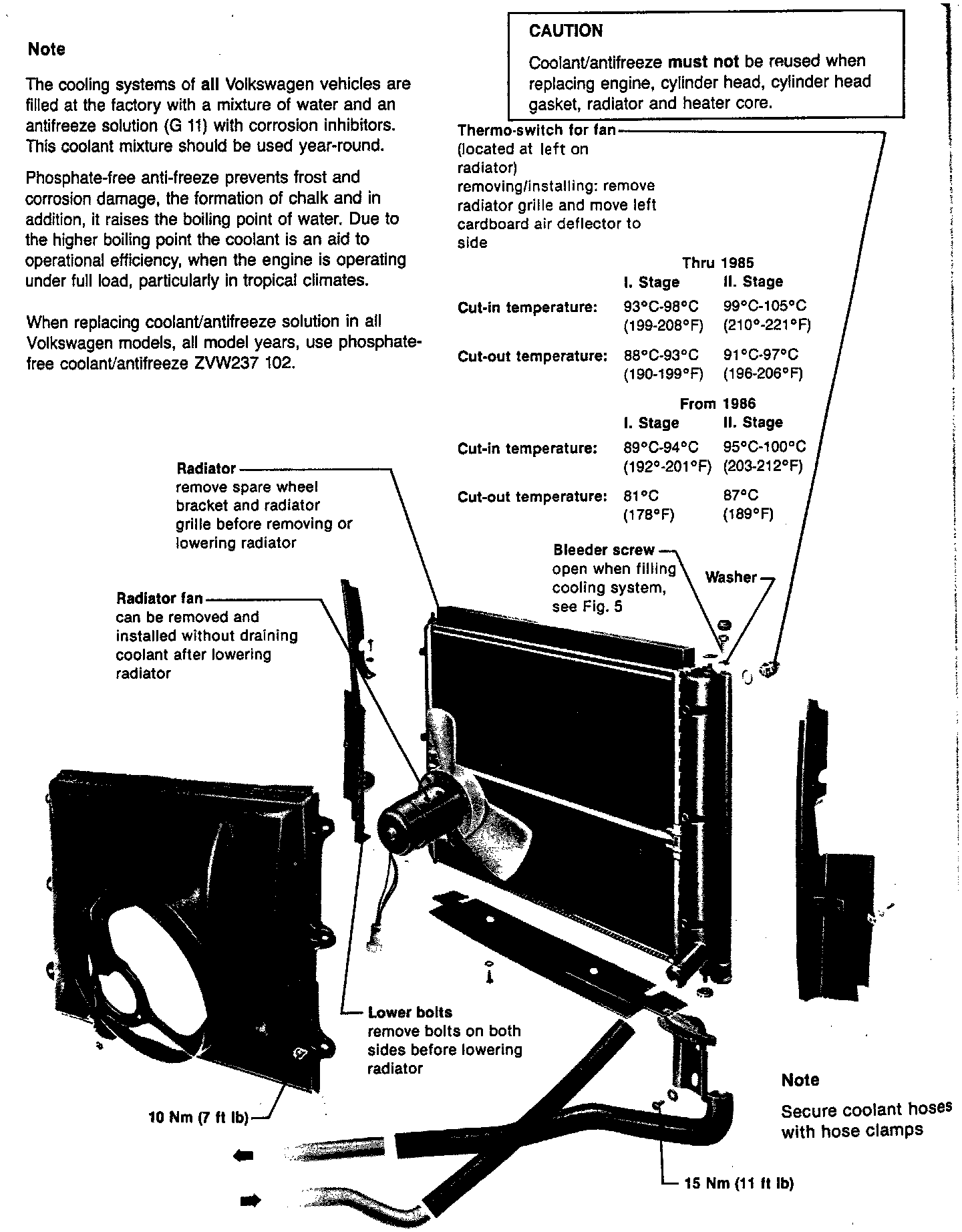

Cooling System Repair & Exploded View, Radiator View.:

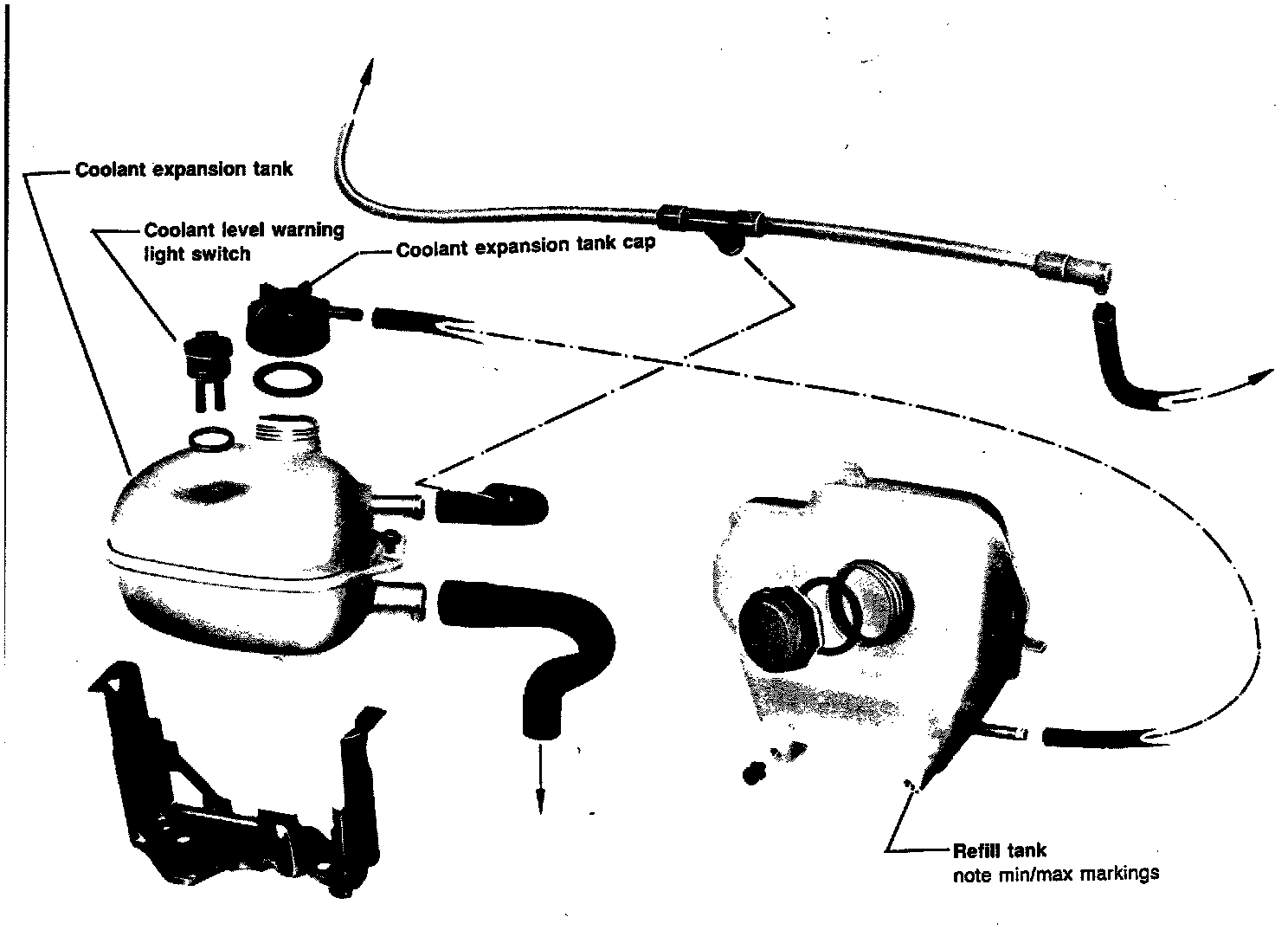

Exploded View At Recovery And Fill Tanks.:



Cooling System Repair & Exploded View, At Water Pump & Engine.:
