Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Fuse/Relay Panel Under left side of dash.

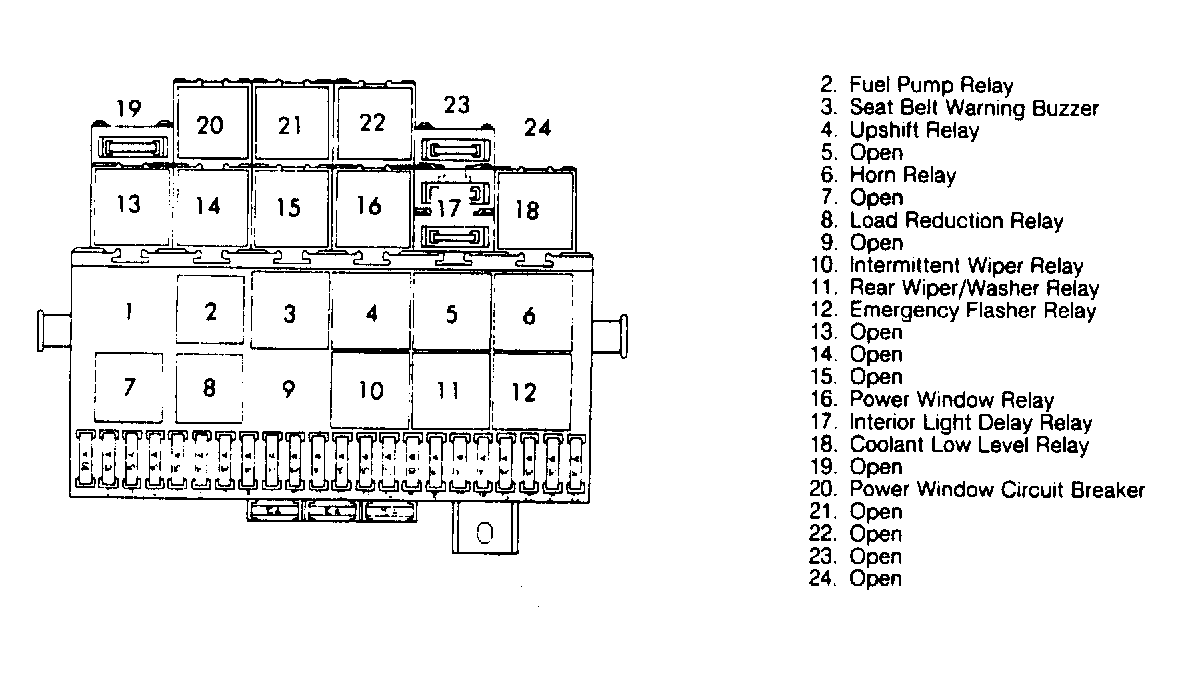

Power Window Circuit Breaker On fuse/relay panel. See Figure .
