Power Circuits

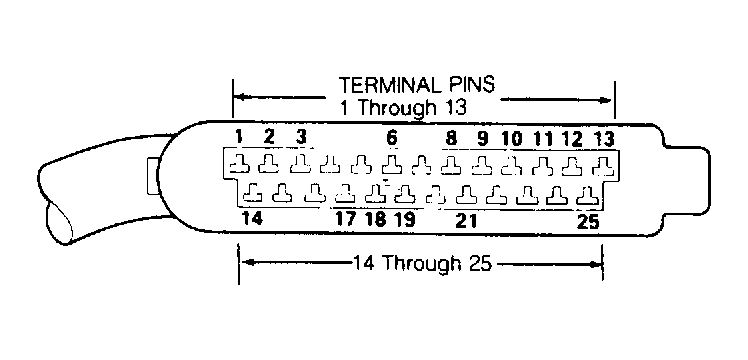

  1. Turn ignition off. Disconnect the ECU connector. Turn ignition on and, using a voltmeter, check for battery voltage between the ECU connector terminals No. 13 (negative) and No. 14 (positive). See Figure . If battery voltage is not present, repair wiring as required.
  2. Check terminals No. 13 (negative) and No. 1 (positive) for battery voltage. If battery voltage is not present, check fuse No. 18 on fuse block. If fuse is okay, check wiring from ECU connector to fuse box for open.
