System Specifications


Automatic Transmission Design and Specifications

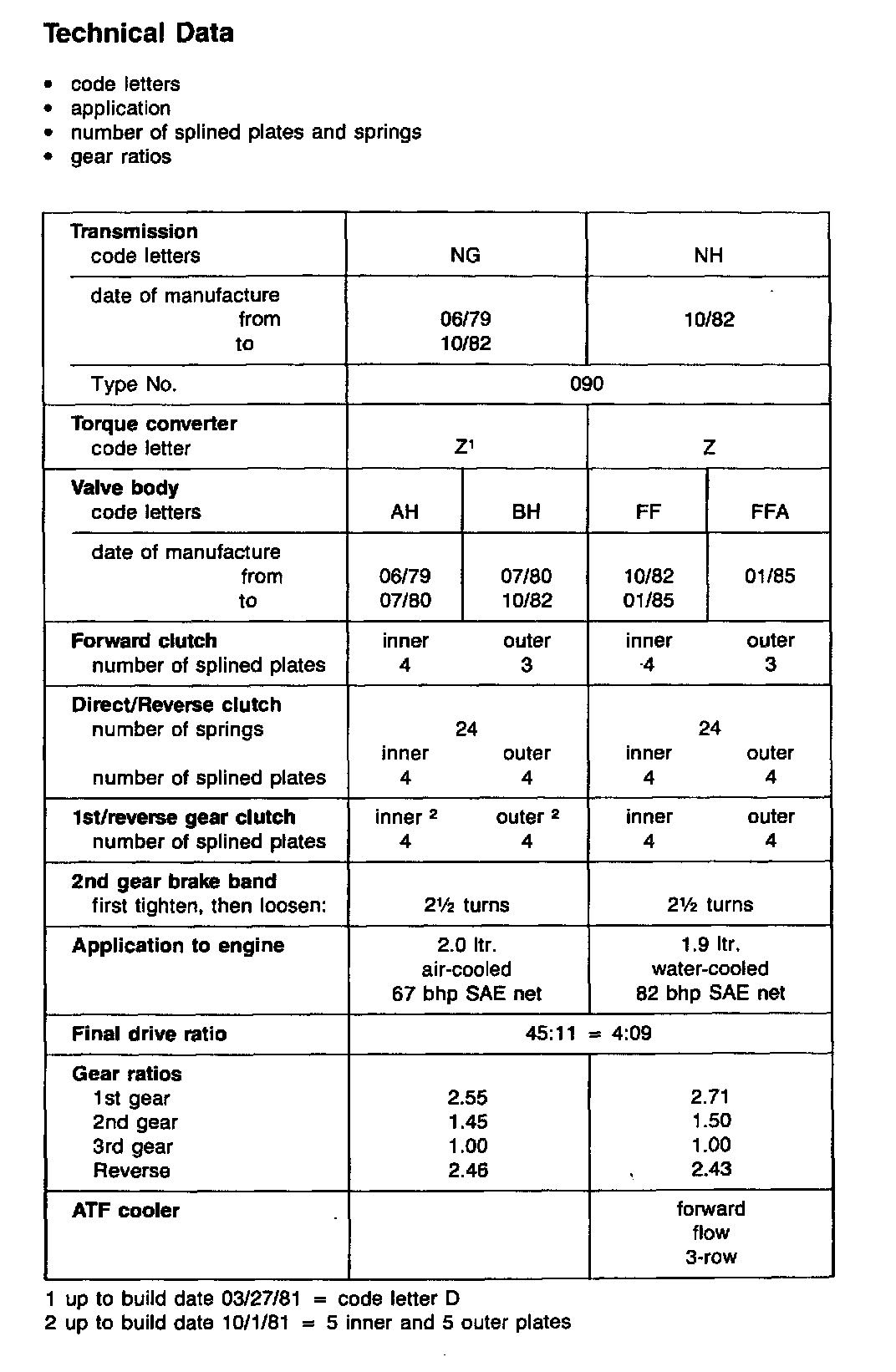

Technical Data, 090:

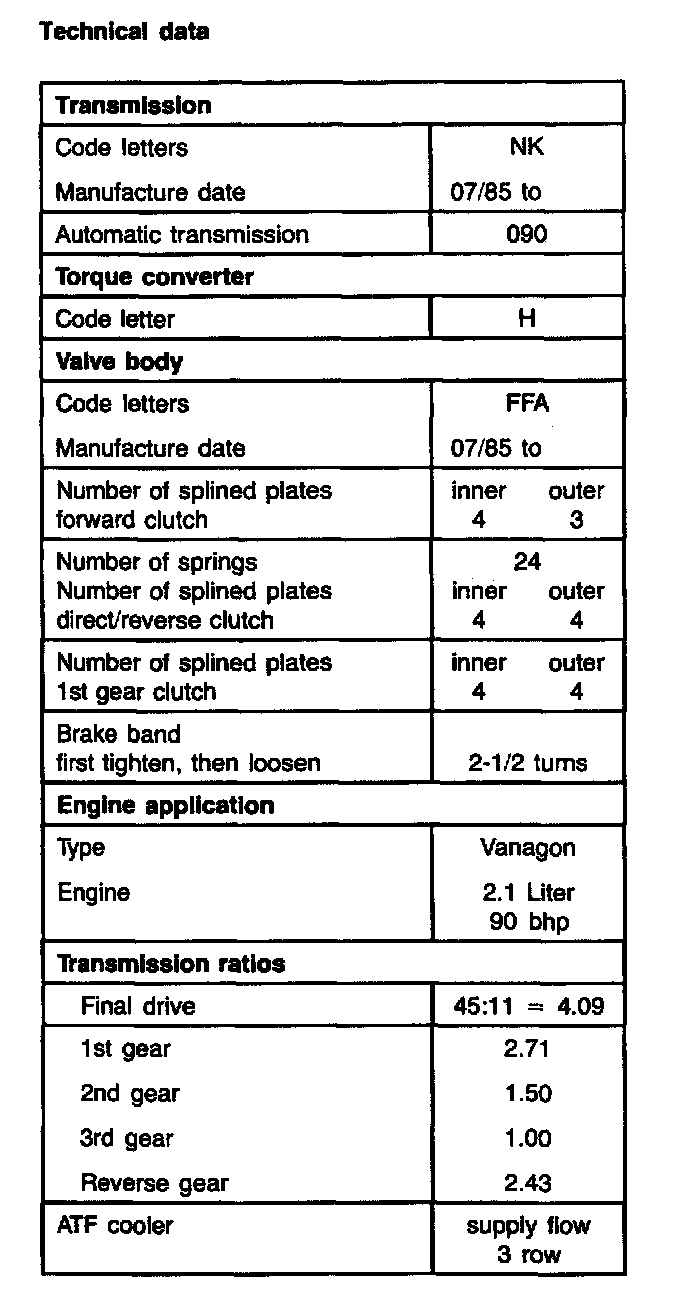

Technical Data:

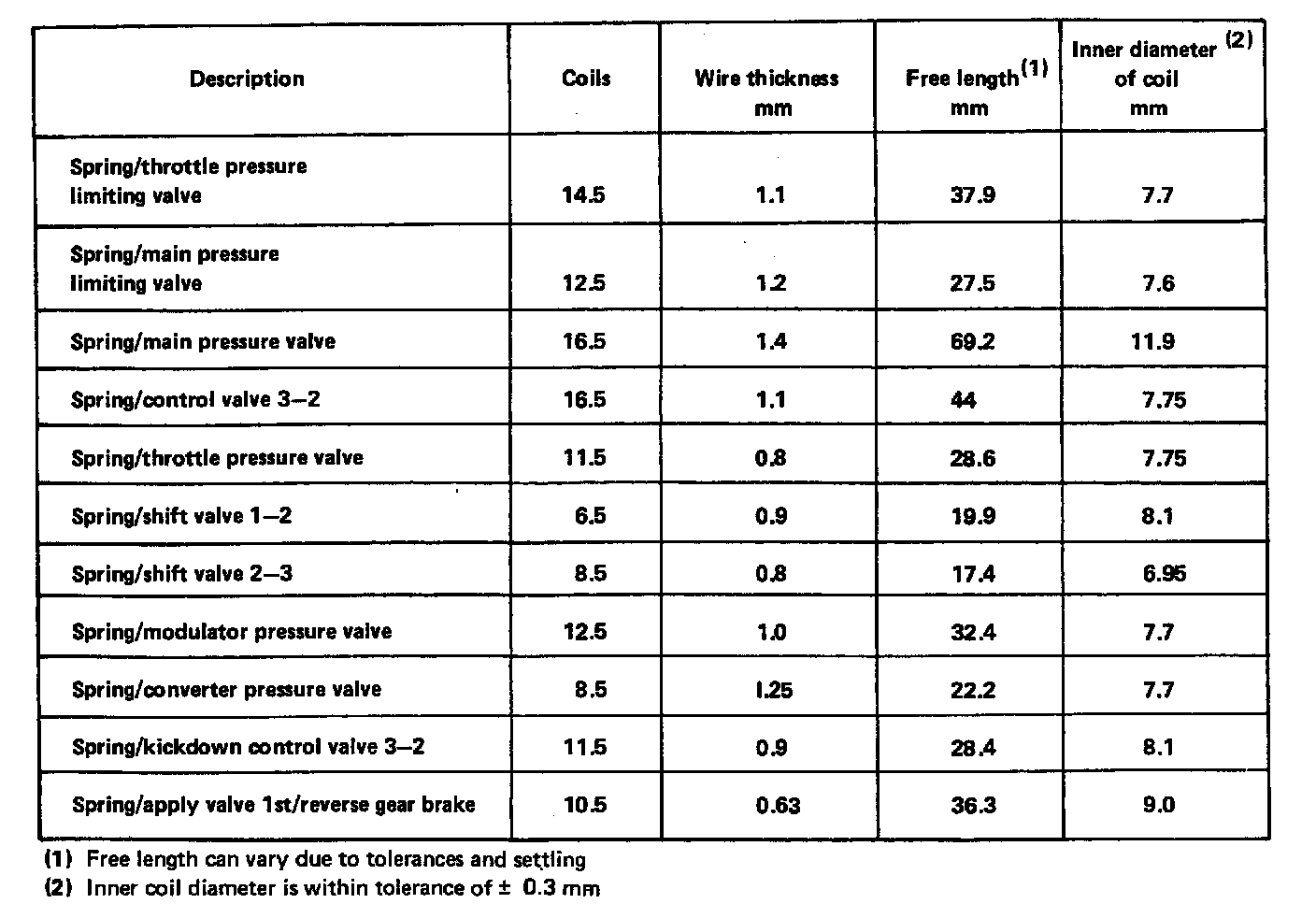

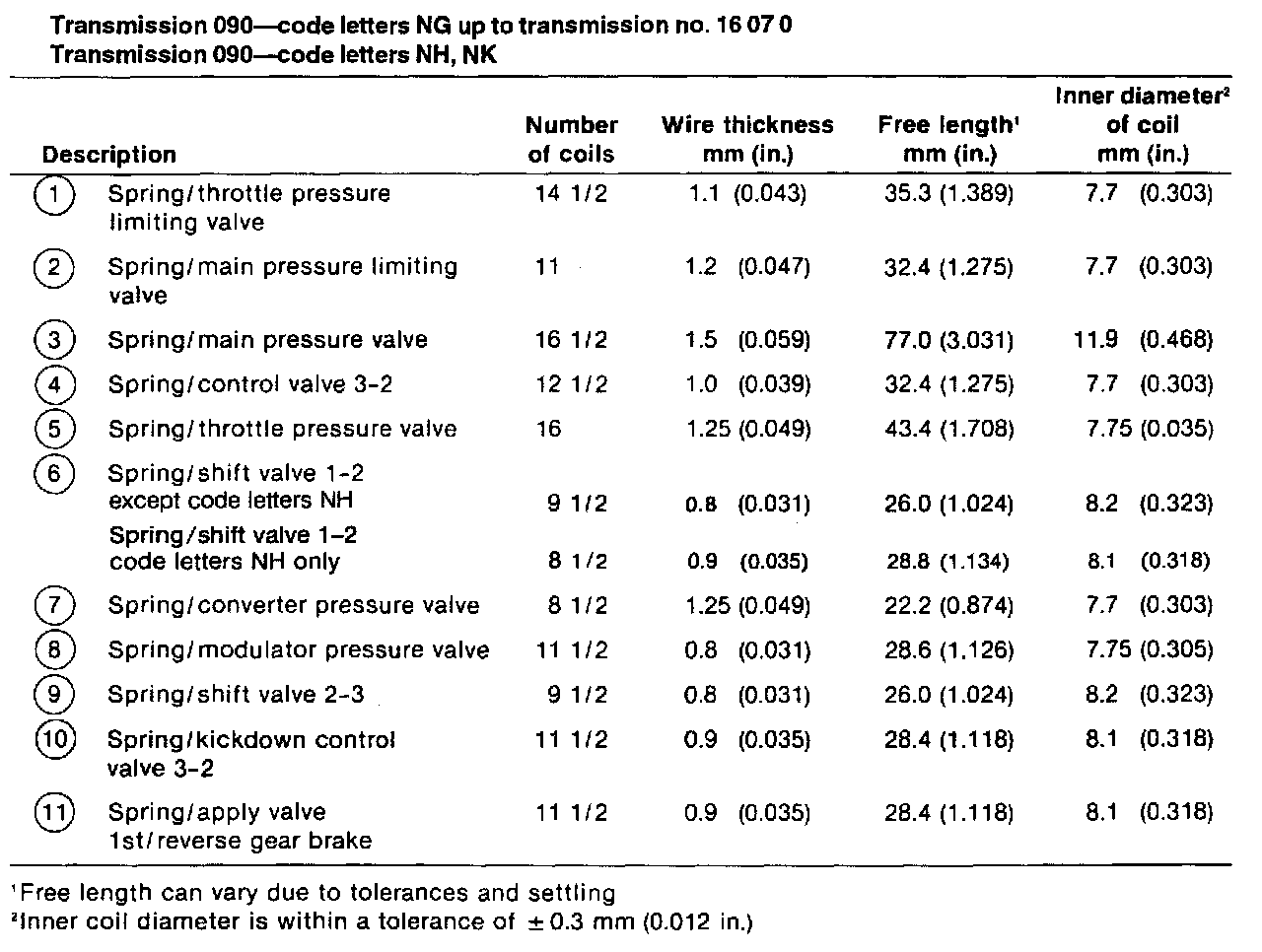

Design Specifications:





Transmission Modifications:
