PCV System: 2.0L

Use illustration to identify PVC system components. Testing is not available. See Fig 1 .

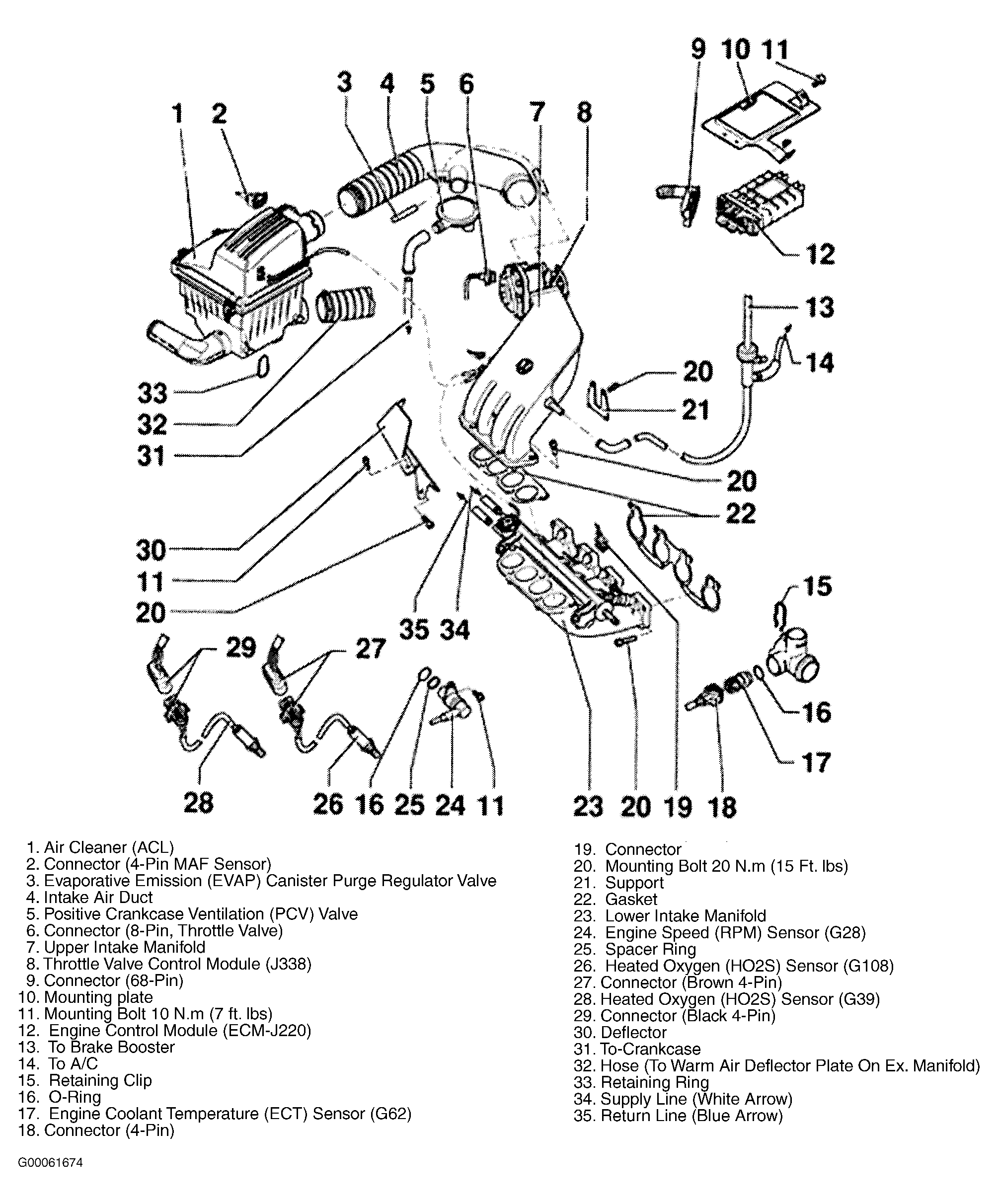

Fig 1: PCV System & Intake Manifold Components (2.0L)

Courtesy of VOLKSWAGEN UNITED STATES, INC.
