Component Locations

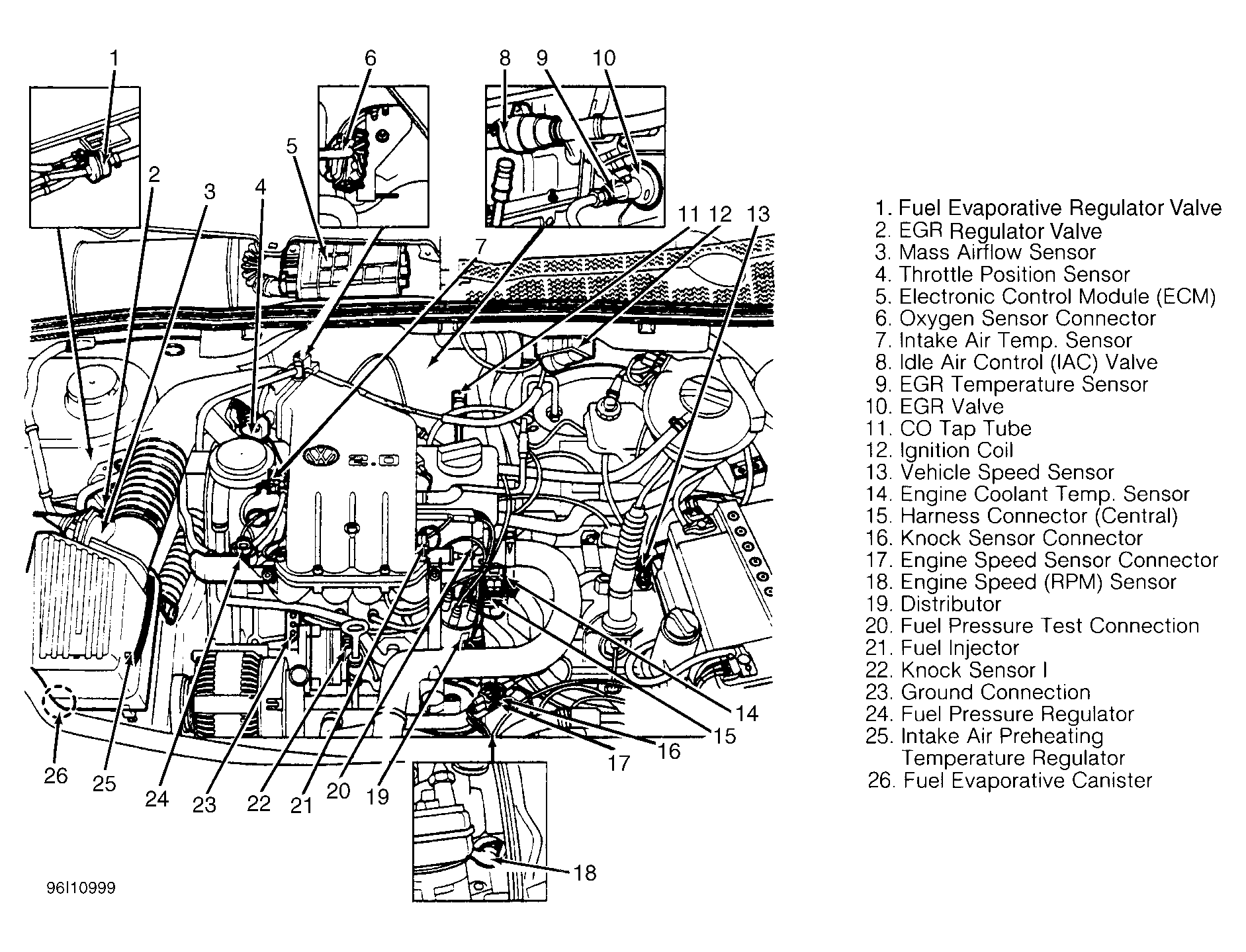

Fig 1: Component Locations (2.0L)
G96I10999Courtesy of VOLKSWAGEN UNITED STATES, INC.

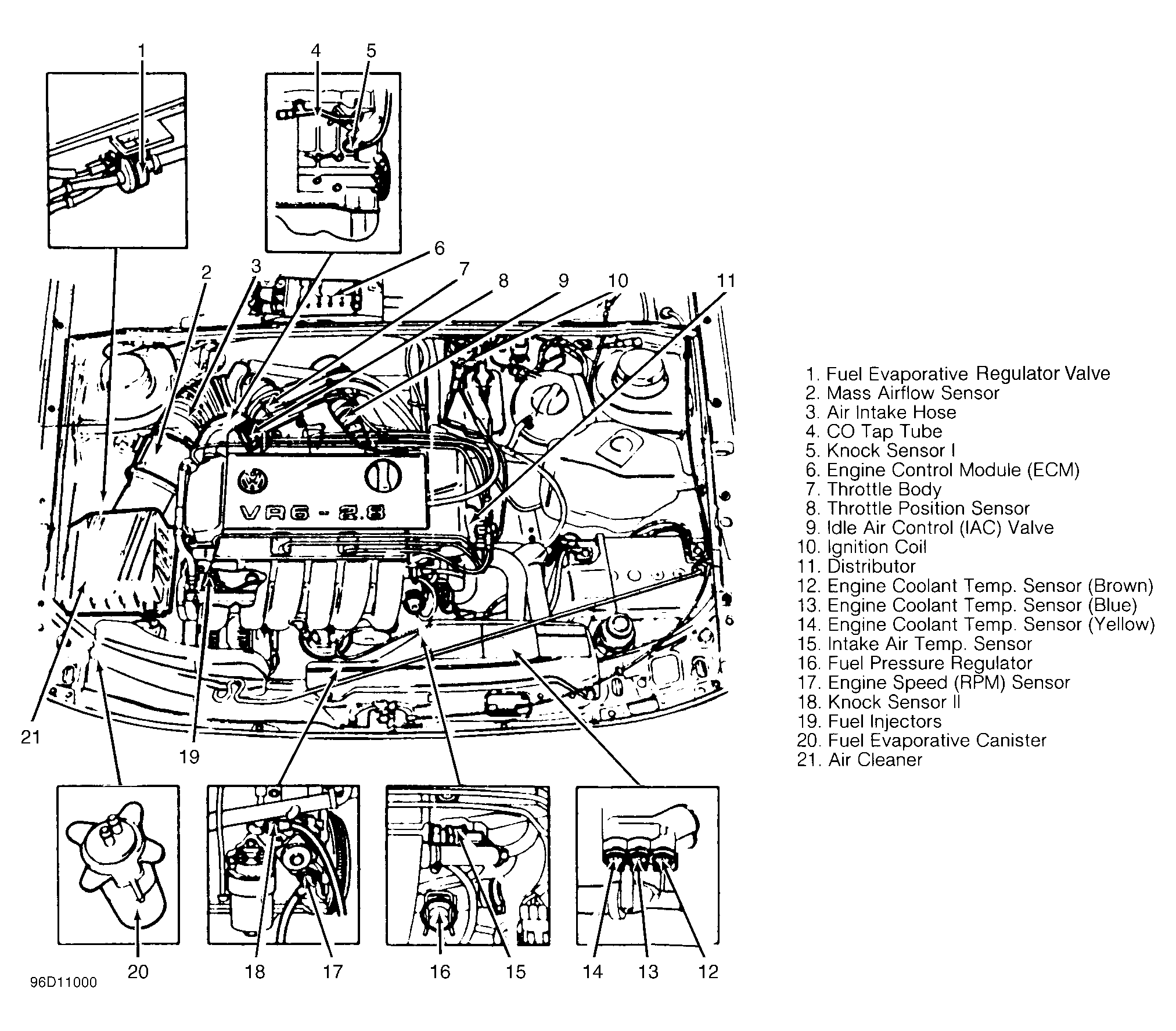

Fig 2: Component Locations (2.8L)
G96D11000Courtesy of VOLKSWAGEN UNITED STATES, INC.
