Engine Code Location

ENGINE CODE LOCATION

Application		See
Beetle
1.8L Turbo (APH)		Fig 1
1.9L Turbo Diesel (ALH)		Fig 2
2.0L (AEG)		Fig 3
Cabrio
2.0L (ABA)		Fig 4
EuroVan
2.8L (AES)		Fig 5
Golf
1.9L Turbo Diesel (ALH)		Fig 2
2.0L (ABA)		Fig 4
2.0L (AEG)		Fig 3
2.8L (AAA)		Fig 6
GTI
2.0L (AEG)		Fig 3
2.8L (AFP)		Fig 7
Jetta
1.9L Turbo Diesel (ALH)		Fig 2
2.0L (ABA)		Fig 4
2.0L (AEG)		Fig 3
2.8L (AFP)		Fig 7
Passat
1.8L (AEB)		Fig 8
2.8L (AHA)		Fig 9

Fig 1: Locating Engine Identification Code (1.8L Turbo - APH)

G00064750

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 2: Locating Engine Identification Code (1.9L Turbo Diesel)

G99F08664

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 3: Locating Engine Identification Code (2.0L - AEG)

G99I08665

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 4: Locating Engine Identification Code (2.0L - ABA)

G99E08668

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 5: Locating Engine Identification Code (2.8L VR6)

G99A08666

Courtesy of VOLKSWAGEN UNITED STATES, INC.

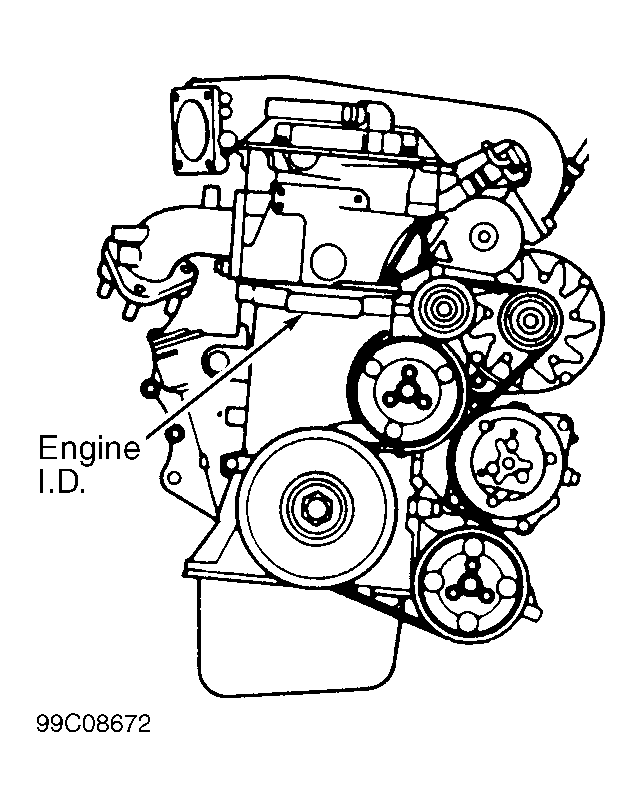

Fig 6: Locating Engine Identification Code (2.8L VR6)

G99C08672

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 7: Locating Engine Identification Code (2.8L VR6)

G99C08667

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 8: Locating Engine Identification Code (1.8L Turbo - AEB)

G00064753

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 9: Locating Engine Identification Code (2.8L V6)

G99A08671

Courtesy of VOLKSWAGEN UNITED STATES, INC.
