Caster Adjustment

NOTE: Before adjusting caster, measure longitudinal inclination. See LONGITUDINAL INCLINATION  under ADJUSTMENTS.
  1. Loosen nut "a". See Fig 1 .
  2. Turn eccentric bolt 'b" until specification is achieved. Tighten nut to specification. SeeTORQUE SPECIFICATIONS  . After fasteners are torqued, recheck all wheel alignment settings and readjust as necessary.

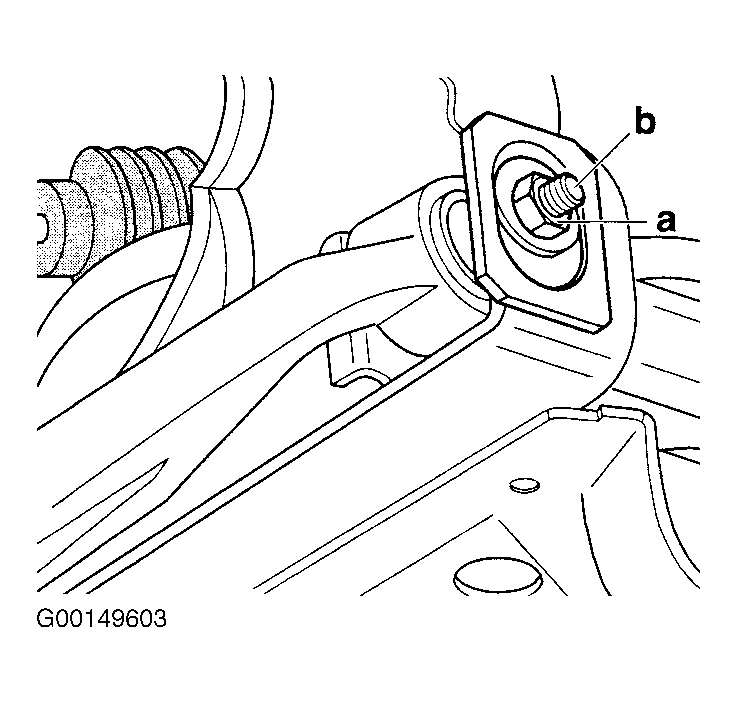

Fig 1: Checking & Adjusting Caster
G00149603Courtesy of VOLKSWAGEN UNITED STATES, INC.
