Test requirements

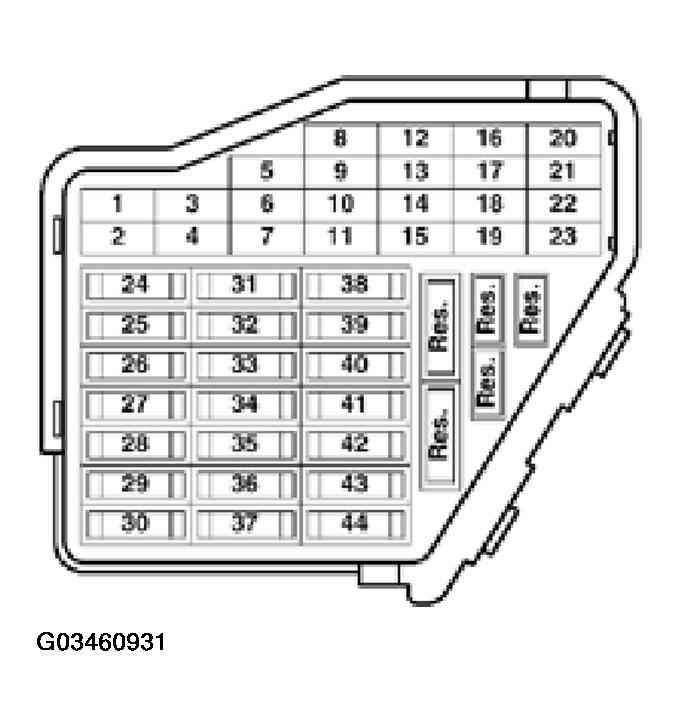

- The respective fuses of Ignition Coil -N152- must be OK.NOTE: Fuse block is located behind access panel at far left end of dash.
- Fuel Pump (FP) Relay -J17- must be OK.
- Battery voltage must be at least 11.5 volts.
- All electrical consumers like, for example, lights and rear window heating must be switched off.
- Parking brake must be engaged or else daylight driving lights will be switched on.
- For vehicles with automatic transmission, selector lever must be in position -P- or -N-.
- If vehicle is equipped with an A/C system, it must be switched off.
- Ground (GND) connections between engine and chassis must be OK.
- Engine speed (RPM) sensor must be OK, checking. See CHECK ENGINE SPEED (RPM) SENSOR .
- Camshaft Position (CMP) sensors must be OK, checking. See CHECK CAMSHAFT POSITION (CMP) SENSOR .
- Ignition switched off.
