Vehicles with engine code AFP

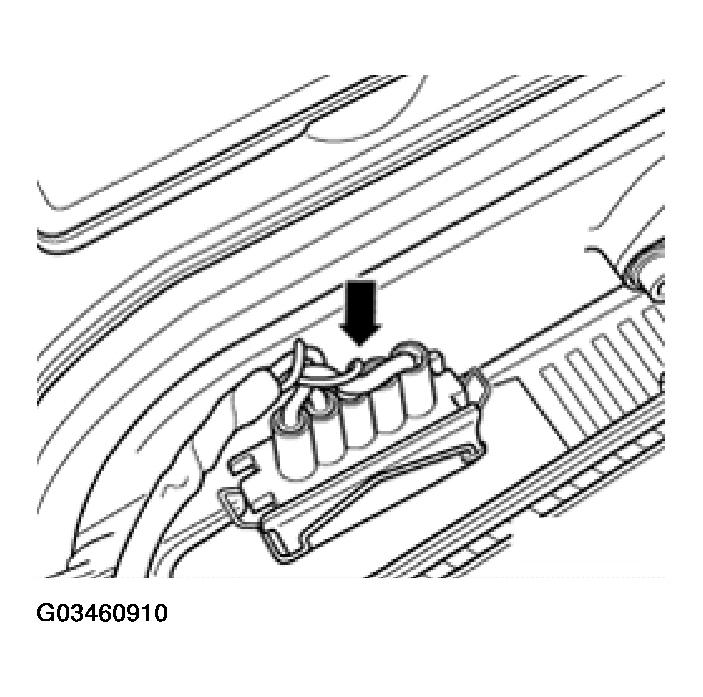

Fig 1: Disconnecting 5-Pin Connector From Ignition Coil (Engine Code AFP)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Remove fuse 32 from fuse holder.
NOTE: By removing fuse 32, voltage supply to the fuel injectors is interrupted.

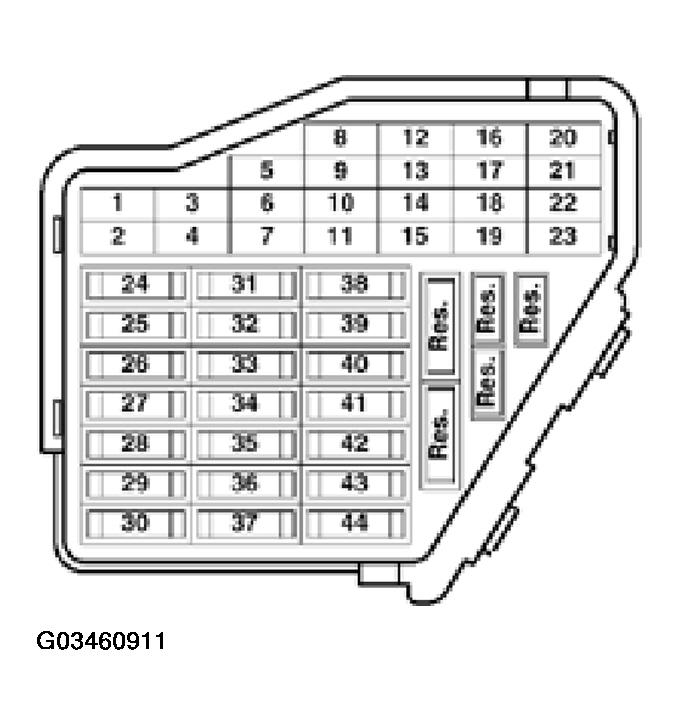

Fig 2: Locating Fuse 32 (Engine Code AFP)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: Fuse block is located behind access panel at far left end of dash.
