Vehicles with engine code AWP, AWW

Disconnect all 4 -pin connectors -2- from the ignition coils -1-.

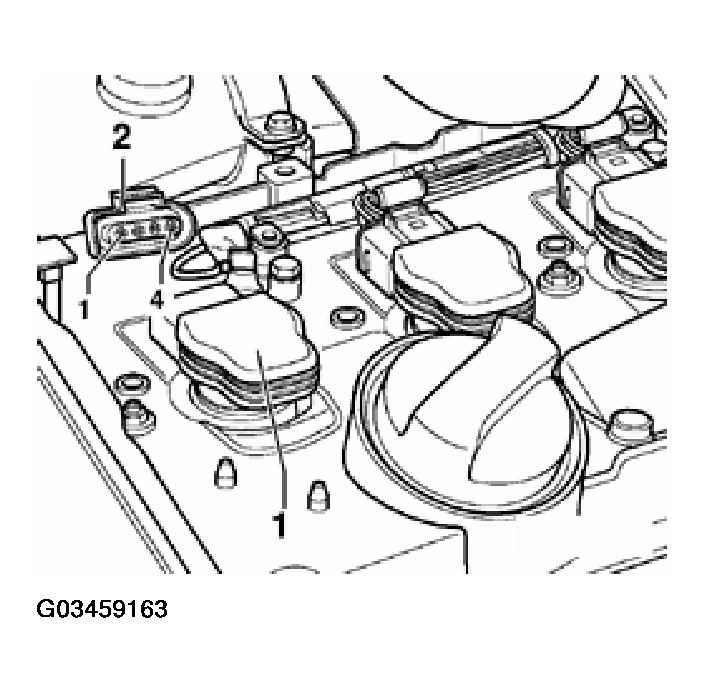

Fig 1: Disconnecting All 4-Pin Connectors From The Ignition Coils (Engine Code AWP, AWW)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Continuation for all vehicles
Remove fuse 32

NOTE: By removing fuse 32, voltage supply to the fuel injectors is interrupted.

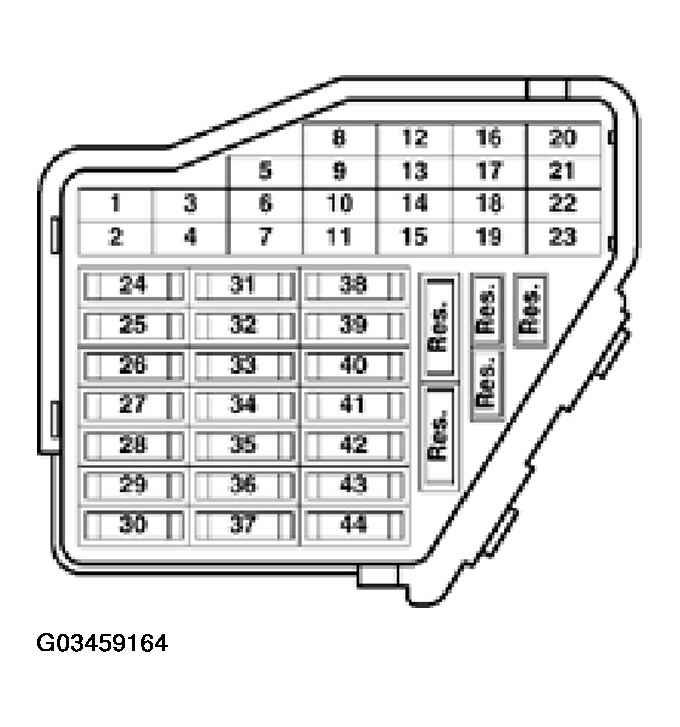

Fig 2: Identifying Fuse Block

G03459164

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: Fuse block is located behind access panel at far left end of dash.
