Display Group 1 (Basic Functions): Notes

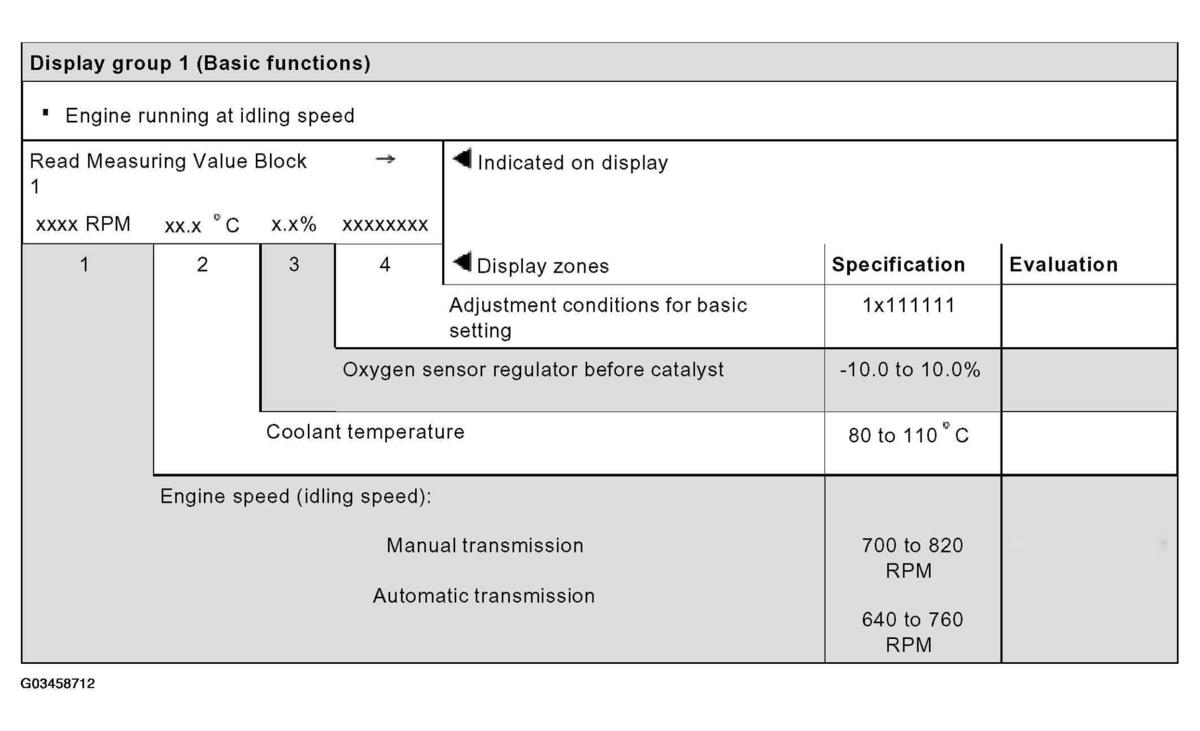

Fig 1: Display Group 1 (Basic Functions)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Evaluations

• For Engine speed (idling speed), see Evaluating display group 1, display zone 1 - Engine speed (idling speed)
• For Coolant temperature, see Evaluating display group 4, display zone 3 - Coolant temperature
• For Oxygen sensor regulator before catalyst, see Evaluating display group 4, display zone 3 - Coolant temperature
• For Adjustment conditions for basic setting, see Significance of 8 -digit number block for readiness code
