Read Measuring Value Block (Function 08): Notes
NOTE:
The measuring value block is divided into 3 display groups, each containing 4 display fields. Use this function to observe various "Gateway" cluster inputs.
- Input address word 17 "Instrument cluster". Then press right arrow button until "Select function XX" is shown in display.
- Indicated on display:
- Rapid data transfer HELP
- Select function XX
- Press buttons -0- and -8- to select function 08 "Read Measuring Value Block". Indicated on display:
- Rapid data transfer Q
- 08 - Read Measuring Value Block
- Press -Q- button to confirm input. Indicated on display:
- Read Measuring Value Block Q
- Enter display group number XXX
- Using the Scan Tool (ST) button pad, enter the required display group number (following example shows display group 001). Press -Q- button to confirm input. Indicated on display:
- Read Measuring Value Block 1
- 1 2 3 4

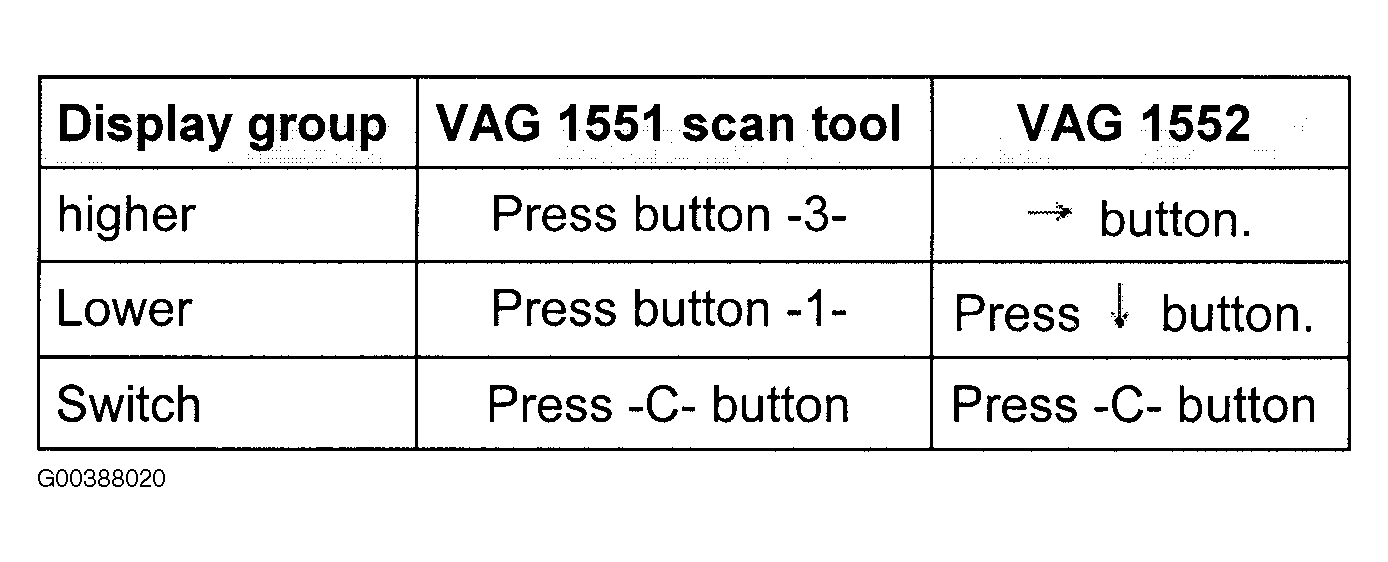

- To switch to a different display group, see Fig 1 .
- Press C button. Indicated on display:
- Read Measuring Value Block HELP
- Enter display group number XXX
- Now the desired display group number can be entered. See Display groups, Interpreting .
