Ride Height

Front Ride Height Measurement






Vehicle must be on wheels.

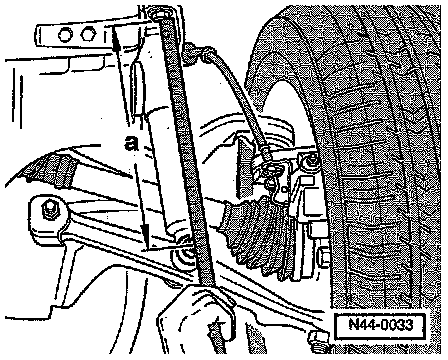

Dimension -a- is measured from upper shock absorber mount bolt head to center of lower shock absorber bolt.

If necessary, adjust to prescribed height by turning nut on torsion bar tensioning lever. Service and Repair
