Flywheel/Flex Plate Torque

Drive plate, removing and installing

- Loosen and remove securing bolts of drive plate in diagonal sequence.

Drive Plate Depth Measurement Specified & Mean Values

- Insert at least 3 old securing bolts into Drive plate and tighten to 30 Nm.

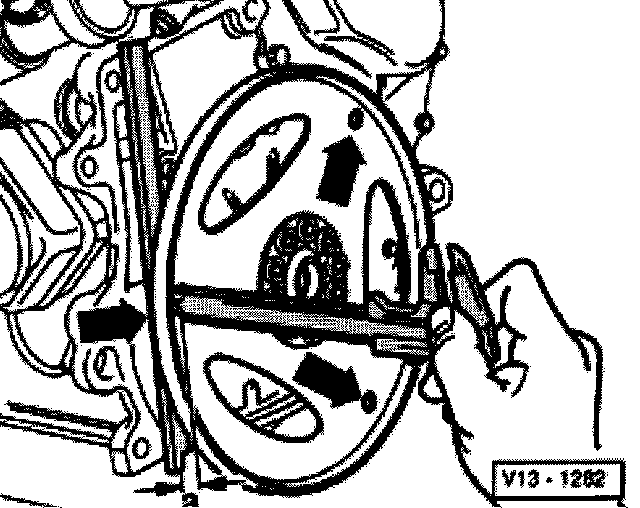

- Measure dimension -a- via 3 holes for converter securing via assisting ruler and depth measurement and calculate mean value.

Specification: 15.7 to 16.5 mm

Drive Plate Securing Bolts 60 Nm

- + 90 ° (1/4 turn)

- (The additional 90 ° (1/4) rotation can occur in several stages).

- Use new Drive Plate Securing bolts.
