Central Locking Component Overview

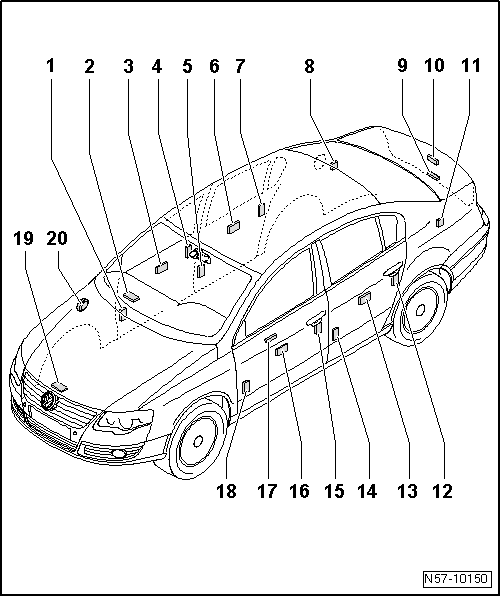

Fig 1: Identifying Component Locations For Central Locking System

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Coupling station
- Installed location: right A-pillar
- To disconnect harness connector, release bellows at pillar, refer to DOOR, REMOVING AND INSTALLING
Comfort System Central Control Module -J393-
- Installed location: under the instrument panel on the front passenger side
- Removing, refer to Removal and Installation
Front passenger door control module -J387-
- Integrated in the front passenger window regulator motor -V148-
- Removing, refer to WINDOW REGULATOR MOTOR
Front passenger side door lock
- Door lock is secured to subframe.
- Electrical central locking system is integrated in door lock.
- Removing, refer to DOOR LOCK
Coupling station
- Installed location: right B-pillar
- To disconnect harness connector, release bellows at pillar, refer to DOOR
Right Rear Door Control Module -J389-
- Integrated inside the right rear window regulator motor -V27-
- Removing, refer to WINDOW REGULATOR MOTOR
Right rear door lock
- Door lock is secured to subframe.
- Electrical central locking system is integrated in door lock.
Motor for fuel tank lid unlock -V155-
- Installed location: behind the luggage compartment trim panel on the right side
- Removing, refer to ACTUATOR
Release button in rear lid handle -E234-
- Installed location on the Sedan: inside the emblem
- Installed location on the Wagon: on the rear lid
Rear lid lock
- Installed location: attached to the rear lid
Rear lid coupling station
- Only on the Sedan
- Installed location: behind the luggage compartment trim panel on the left side
- Removing and Installing, refer to Removal and Installation
Left rear door lock
- Door lock is secured to subframe.
- Electrical central locking system is integrated in door lock.
- Removing, refer to DOOR LOCK
Left Rear Door Control Module -J388-
- Integrated inside the left rear window regulator motor -V26-.
- Removing, refer to WINDOW REGULATOR MOTOR
Coupling station
- Installed location: left B-pillar
- To disconnect harness connector, release bellows at pillar, refer to DOOR
Left front door lock
- Door lock is secured to subframe.
- Electrical central locking system is integrated in door lock.
- Removing, refer to DOOR LOCK
Driver door control module -J386-
- Integrated inside the driver window regulator motor -V147-.
- Removing, refer to WINDOW REGULATOR MOTOR
Central window regulator switch in driver door
- Installed location: inside the door trim panel
- Window Regulator Central Switch, Removing and Installing, refer to illustrations in SHIFT ELEMENT, DRIVER SIDE
Coupling station
- Installed location: left A-pillar
- To disconnect harness connector, release bellows at pillar, refer to DOOR, REMOVING AND INSTALLING
Hood switch -F266-
- Removing and Installing, refer to [For engine(s) BPY,BLV,CCTA,CBFA] FRONT HOOD SWITCH F266 .
- Installed location: on the latch
- Removing and installing lid lock, refer to HOOD LATCH
Alarm Horn -H12-
- Installed location: under the right fender
- Removing, refer to [For engine(s) BPY,BLV,CCTA,CBFA] ALARM HORN H12 .
