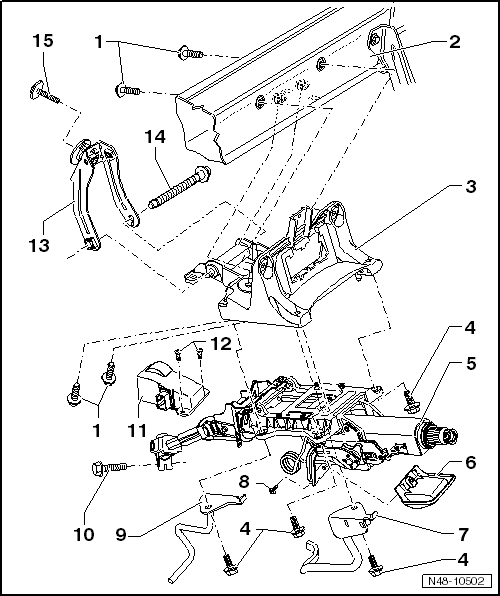

Steering Column Assembly Overview
NOTE:
Welding and straightening work on supporting or wheel carrying components of suspension is not permitted.
Always replace self-locking nuts.
Always replace corroded bolts/nuts.
- Bolt
- M8 x 30; M8 x 85
- 20 Nm
- Lateral Control Arm for Steering Column
- Mounting Bracket
- Removing and installing, refer to MOUNTING BRACKET .
- Bolt
- M8 x 30
- 20 Nm
- Always replace if removed.
- Steering Column
- Removing and installing, refer to STEERING COLUMN .
- Handle Plate
- Brake Pedal Crash Brace
- Bolt
- M6 x 10
- 3 Nm
- Clutch Pedal Crash Brace
- Bolt
- M8 x 35
- 20 Nm + 90° turn
- Always replace if removed.
- Electronic Steering Column Lock Control Module -J764-
- Removing and installing, refer to ELECTRONIC STEERING COLUMN LOCK CONTROL MODULE .
- Shear Head Bolt
- Strut
- Removing and installing, refer to STRUT .
- Bolt
- M8 x 94
- 20 Nm
- Bolt
- M8 x 48
- 20 Nm
