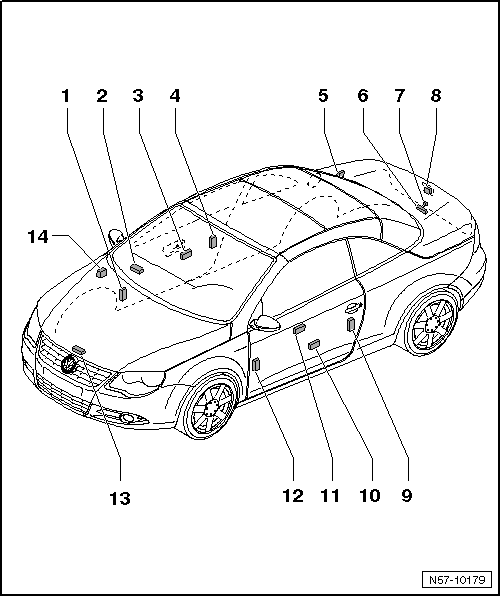

Central Locking Component Overview
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
- Connector station
- Installed location: right A-pillar
- To disconnect connector, release bellows at A-pillar.
- Comfort System Central Control Module -J393-
- Installed location: under the instrument panel on the front passenger side and behind the glove compartment.
- Removing, refer to Removal and Installation
- Front passenger door control module -J387-
- Front passenger door central locking lock unit -F221-
- Door lock is secured to subframe.
- Electrical central locking system is integrated in door lock.
- Removing and Installing, refer to DOOR LOCK
- Fuel Tank Lid Unlock Motor -V155-
- Installed location: behind right luggage compartment trim panel.
- Removing and Installing, refer to ACTUATOR
- Striker pin with Rear Lid Opening Assist Unlock Stop Switch -F332-
- Rear lid lock
- Installed location: bolted to the rear lid
- Removing and Installing, refer to REAR LID LATCH
- Rear Lid Handle Unlock Switch -E234-
- Installation location: in the emblem
- Removing and Installing, refer to RELEASE ELEMENT
- Driver door central locking lock unit -F220-
- Electrical central locking system is integrated in door lock.
- Removing and Installing, refer to DOOR LOCK
- Driver door control module -J386-
- Central Window Regulator Switch (in driver's door) -E189-
- Installed location: inside the door trim panel on the driver side
- Remove and installing central window regulator switch. Refer to DRIVER WINDOW REGULATOR SWITCH
.
- Connector station
- Installed location: left A-pillar
- To disconnect harness connector, release bellows at pillar.
- Front Hood Switch -F266-
- Alarm Horn -H12-
- Installed location: under the right fender on the A-pillar
- Removing and installing, refer to ALARM HORN
