Folding Remote Control Key Battery Assembly Overview

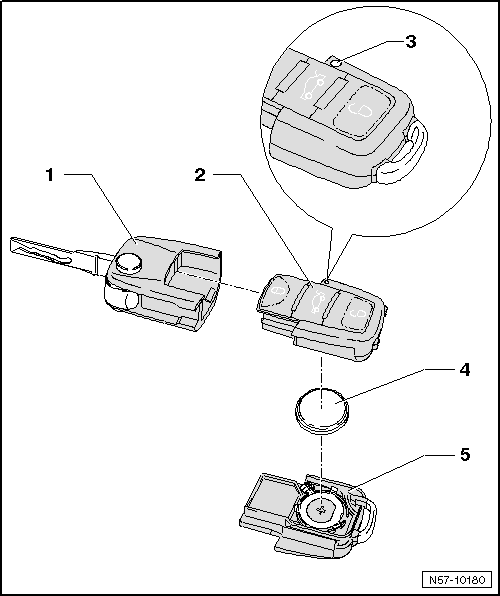

Fig 1: Identifying Assembly Overview: Folding Remote Control Key Battery

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Key with variable code transponder
2. Remote control key - upper section
3. LED
   • This LED must blink when operating the remote control
   • If LED does not blink when remote control is operated, the battery is completely discharged and must be replaced:
4. Battery
5. Remote control key - lower part
