Inner Door Panel Assembly Overview

NOTE:

The description applies to the right side. The left side is similar

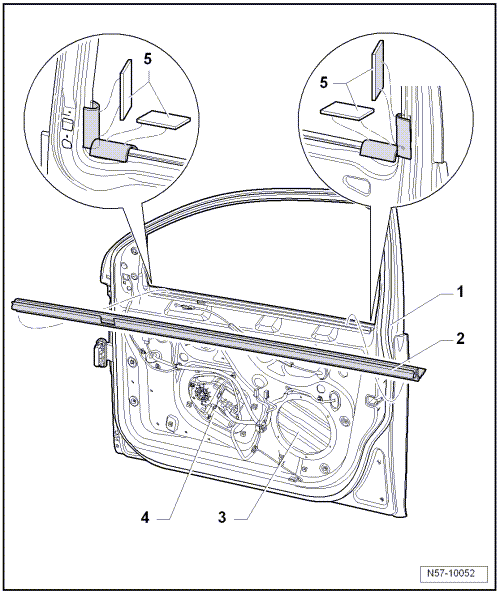

Fig 1: Inner Door Panel, Assembly Overview
GWWN57-10052Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Inner door part
  2. Window shaft seal
  3. Speaker
  4. Window regulator motor
  5. Insulation
    • Qty. 4
    • 20 mm x 40 mm commercially available cloth reinforced adhesive tape
