Central Locking System Component Location Overview

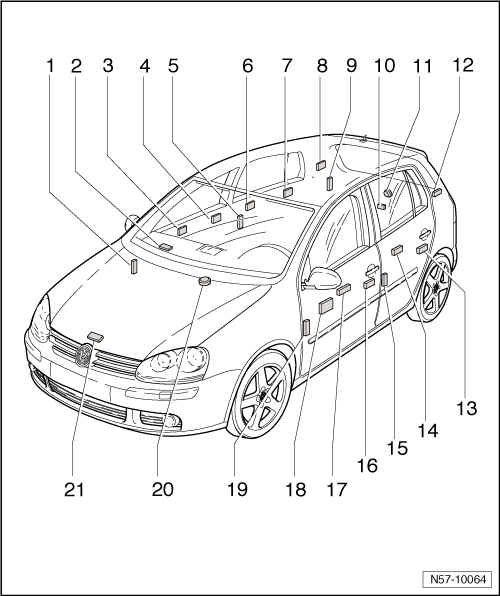

Fig 1: Central Locking System, Component Location Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Coupling station
   • Location: A-pillar, right
   • To disconnect harness connector, release bellows at pillar DOOR
2. Comfort System Central Control Module -J393-
   • Location: below passenger side instrument panel, behind glove compartment
   • Removing Removal and Installation
3. Front Passenger's Door Control Module -J387-
   • Integrated in window regulator motor.
4. Door lock
   • Door lock is secured to inner door part.
   • Electrical central locking system is integrated in door lock.
   • Removing DOOR LOCK
5. Coupling station
   • Location: B-pillar, right.
   • To disconnect harness connector, release bellows at pillar DOOR
6. Right Rear Door Control Module -J389-
   • Integrated in window regulator motor.
7. Door lock
   • Door lock is secured to inner door part.
   • Electrical central locking system is integrated in door lock.
   • Removing DOOR LOCK
8. Right rear lid connector station
   • Location: behind C-pillar trim.
   • Removing and installing Removal and Installation
9. Fuel Tank Lid Unlock Motor -V155-
   • Location: behind right luggage compartment trim.
   • Removing ACTUATOR
10. Rear lid lock
    • Location: screwed to rear lid.
    • Removing REAR LID LOCK
11. Unlocking element with button
    • Location: screwed into rear lid.
    • Removing REAR LID RELEASE ELEMENT
12. Left rear lid connector station
    • Location: behind C-pillar trim.
    • Removing and installing Removal and Installation
13. Door lock, LR
    • Door lock is secured to inner door part.
    • Electrical central locking system is integrated in door lock.
    • Removing DOOR LOCK
14. Left Rear Door Control Module -J388-
    • Integrated in window regulator motor.
15. Coupling station
    • Location: Left B-pillar.
    • To disconnect harness connector, release bellows at pillar DOOR
16. Door lock, LF
    • Door lock is secured to inner door part.
    • Electrical central locking system is integrated in door lock.
    • Removing DOOR LOCK
17. Central switch for window regulator
    • Location: installed in door trim
    • Remove and installing central window regulator switch. Refer to DOOR LAMPS AND SWITCHES .
18. Driver's Door Control Module -J386-
    • Integrated in window regulator motor.
19. Coupling station
    • Location: Left A-pillar.
    • To disconnect harness connector, release bellows at pillar DOOR .
20. Alarm signal horn
    • Location: under the right fender.
    • Removing refer to ALARM HORN -H12- .
21. Front Hood Switch -F266-
    • Anti-theft warning system contact switch.
    • Location: On lid lock.
    • Removing refer to ENGINE HOOD CONTACT SWITCH -F266- .
