Camshaft Position Sensor G40, Checking

Special tools and workshop equipment required

• Multimeter.
• Wiring diagram.

Test requirements

• The Engine Control Module (ECM) - J623- fuses OK.
• Battery voltage at least 12.5 volts.
• All electrical consumers such as, lights and rear window defroster, switched off.
• Vehicles with automatic transmission, shift selector lever into position "P" or "N".
• A/C switched off.
• Ground (GND) connections between engine/transmission/chassis OK.
• Ignition switched off.

Test procedure

-- Perform a preliminary check to verify the customers complaint. Refer to PRELIMINARY CHECK .

Start diagnosis

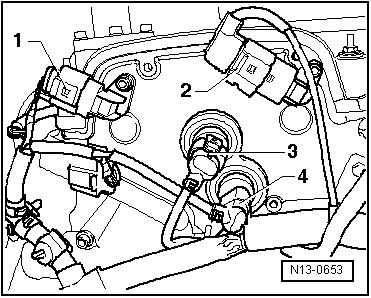

-- Disconnect the Camshaft Position (CMP) Sensor -G40- electrical harness connector -1-.

-- Switch the ignition on.

-- Using a Multimeter, Check the Camshaft Position (CMP) Sensor -G40- electrical harness connector terminals 1 to 3 for voltage.

Specified value: about 5.0 V

-- Switch the ignition off.

If the specification was obtained:

-- Replace Camshaft Position (CMP) Sensor -G40-.

If the specification was not obtained:

Checking wiring

If the specified value was not obtained:

If the manufacturers test box is being used. Perform the following step.

-- Install the test box.

If the manufacturers test box is not being used. Perform the following step.

-- Remove the Engine Control Module (ECM) -J623-. Refer to ENGINE CONTROL MODULE J623, REPLACING .

-- Using a Multimeter, Check the Camshaft Position (CMP) Sensor -G40- electrical harness connector to the Engine Control Module (ECM) electrical harness connector T121 for resistance.

Camshaft Position (CMP) Sensor -G40- electrical harness connector terminals	Engine Control Module (ECM) electrical harness connector T121 terminals or test box sockets
1	98
2	87
3	108

Specified value: 1.5 Ω Max.

If the specified value was not obtained:

-- Check the wiring connection for an open circuit, short circuit to Battery (+) or Ground (GND).

-- Check the wiring connection for damage, corrosion, loose or broken terminals.

-- If necessary, repair the faulty wiring connection.

-- Erase the DTC memory. Refer to DIAGNOSTIC MODE 04 - ERASE DTC MEMORY .

-- Perform a road test to verify repair.

If the DTC does not return:

Repair complete, Generate readiness code. Refer to READINESS CODE DESCRIPTION .

-- End diagnosis.

If the DTC returns and no malfunction is found in the wiring and the voltage supply was OK:

-- Replace the Engine Control Module (ECM) -J623-. Refer to ENGINE CONTROL MODULE J623, REPLACING .

-- Assembly is performed in the reverse of the removal.

Final procedures

After repair work, the following work steps must be performed in the following sequence:

1. Check the DTC memory.  Refer to DIAGNOSTIC MODE 03 - READ DTC MEMORY .
2. If necessary, erase the DTC memory.  Refer to DIAGNOSTIC MODE 04 - ERASE DTC MEMORY .
3. If the DTC memory was erased, generate readiness code.  Refer to READINESS CODE .

End of diagnosis
