Multimedia System Control Module -J650-







Control modules in luggage compartment

Multimedia system control module -J650-









Component Location:

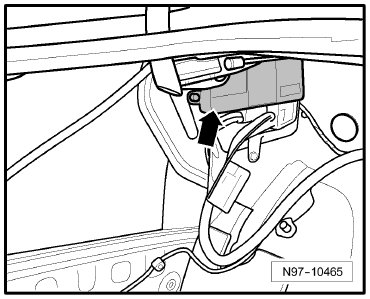

In luggage compartment, behind left side panel trim -Arrow-
