Multimedia System Control Module -J650- CONNECTOR

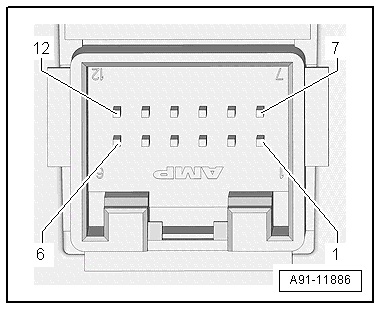

Fig 1: 12-Pin Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Terminal 31
2. Can Bus Low
3. Not Assigned
4. Right audio signal to the radio/RNS
5. External Audio Source Connection -R199- left audio signal
6. External Audio Source Connection -R199- right audio signal
7. Terminal 30
8. CAN Bus High
9. Left audio signal to the radio/RNS
10. Audio ground to the radio/RNS
11. Audio ground from External Audio Source Connection -R199-
12. Audio ground shielding, terminal 31
