Multimedia System Control Module -J650- OVERVIEW, UMI

The UHV High and the MDI are housed together near the UMI, Universal Media Interface. The Cellular Telephone -R54- is connected via Bluetooth.

The functions of the UHV High and MDI are combined in one device.

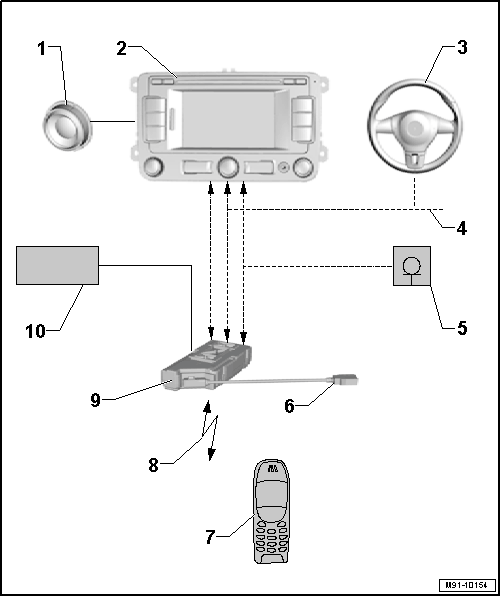

Fig 1: Multimedia System Control Module -J650- Overview (UMI)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Speaker System
2. Radio/Navigation Display Unit Control Module -J503-
3. Multifunction Steering Wheel
4. CAN Bus
5. Telephone Microphone -R38-
6. Adapter Wire
   • One for each device being connected
7. Cellular Telephone -R54-
8. Bluetooth connection
9. Multimedia System Control Module -J650-, UMI
   • Different component locations (in the glove compartment, refer to Fig 2 or in the center console, refer to Fig 3)
   • UMI Control Module on Glove Compartment, Removing and Installing, refer to Multimedia System Control Module -J650-, UMI .
   • UMI Control Module in Center Console, Removing and Installing, refer to Multimedia System Control Module -J650-, UMI .
10. 54-Pin Connector

Fig 2: Locating Multimedia System Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The Multimedia System Control Module -J650- -1- is installed inside the glove compartment.

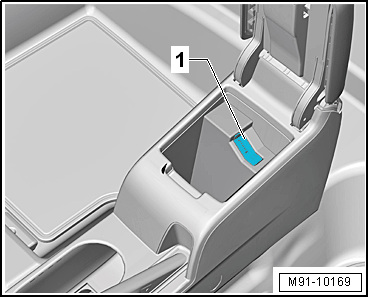

Fig 3: Locating UMI Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The Multimedia System Control Module -J650- -1- is installed in the center console.
