Multimedia System Control Module -J650- OVERVIEW

Analog audio (via the AUX IN input) and digital audio (via the USB or iPod input) can be played on the radio or radio/radio-navigation system via the Multimedia System Control Module -J650-. Devices that are connected digitally can be operated through the radio/RNS. ID3 tags and titles are also displayed in the radio/RNS display.

The Multimedia System Control Module -J650- has USB and iPod connections that can be used for audio input (AUX IN). A specific adapter cable is used to connect the mobile device to the USB or iPod interface on the Multimedia System Control Module -J650-.

For further information.

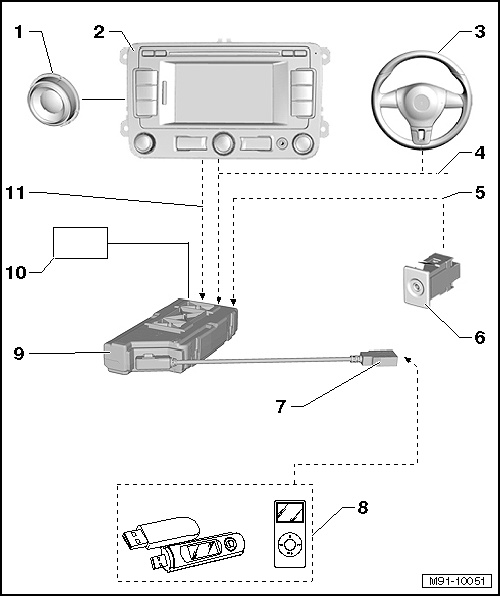

Fig 1: Multimedia System Control Module -J650- Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Sound System
Radio/RNS
Multifunction Steering Wheel
CAN Bus
LF Wire
- External Audio Source Connection -R199-
External Audio Source Connection -R199-
- Connector assignment, refer to External Audio Source Connection -R199- CONNECTOR, AUX IN .
- Removing and installing, refer to External Audio Source Connection -R199- IN CENTER CONSOLE STORAGE COMPARTMENT .
Adapter Wire
- One for each device being connected
Input Devices
- MP3 player
- Memory sticks
- iPod
Multimedia System Control Module -J650-
- Connector assignment, refer to Multimedia System Control Module -J650- CONNECTOR .
- Removing and installing, refer to Multimedia System Control Module -J650- .
Voltage Supply
- Terminal 30/31
LF Wire
- Multimedia System Control Module -J650- for the radio/RNS

Component location Multimedia System Control Module -J650-

Fig 2: Locating Multimedia System Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

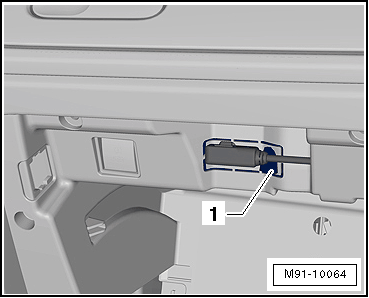

The Multimedia System Control Module -J650- -1- is inside the glove compartment.
