Component Location Overview - Central Locking Components

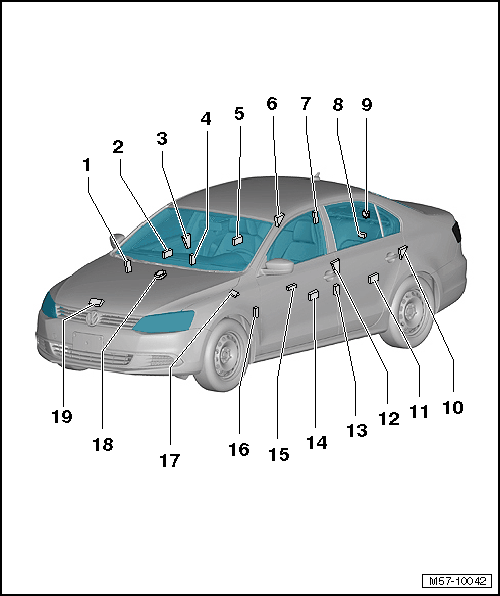

Fig 1: Central Locking Component Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Connector Station
   • Installed location: left A-pillar
   • Loosen the boot on the pillar to disconnect the connector
2. Front Passenger Door Control Module -J387-
   • Integrated inside the Front Passenger Window Regulator Motor -V148-
   • Removing and installing, refer to FRONT DOOR WINDOW .
3. Front Passenger Door Lock
   • The door lock is attached to the door inner panel.
   • The power central locking system is integrated in door lock.
   • Removing and installing, refer to DOOR LOCK .
4. Connector Station
   • Installed location: right B-pillar
   • Loosen the boot on the pillar to disconnect the connector
5. Right Rear Door Control Module -J389-
   • Integrated inside the Right Rear Window Regulator Motor -V27-
   • Removing and installing, refer to FRONT DOOR WINDOW .
6. Right Rear Door Lock
   • The door lock is attached to the door inner panel.
   • The power central locking system is integrated in door lock.
   • Removing and installing, refer to DOOR LOCK .
7. Fuel Filler Door Unlock Motor -V155-
   • Removing and installing, refer to Fuel Filler Door Unlock Motor -V155- .
8. Rear Lid Lock
   • Installed location: on the rear lid
   • Removing and installing, refer to REAR LID LATCH .
9. Release Button In Rear Lid Handle -E234-
   • Installed location: on the rear lid
   • Removing and installing, refer to Rear Lid Handle Unlock Switch - E234- .
10. Left Rear Door Lock
    • The door lock is attached to the door inner panel.
    • The power central locking system is integrated in door lock.
    • Removing and installing, refer to DOOR LOCK .
11. Left Rear Door Control Module -J388-
    • Integrated inside the Left Rear Window Regulator Motor -V26-
    • Removing and installing, refer to FRONT DOOR WINDOW .
12. Driver Side Door Lock
    • The door lock is attached to the door inner panel.
    • The power central locking system is integrated in door lock.
    • Removing and installing, refer to DOOR LOCK .
13. Connector Station
    • Installed location: left B-pillar
    • Loosen the boot on the pillar to disconnect the connector
14. Driver Door Control Module -J386-
    • Integrated inside the Driver Window Regulator Motor -V147-
    • Removing and installing, refer to FRONT DOOR WINDOW .
15. Driver Side Window Regulator Switch Module
    • Installed location: inside the driver door trim panel
    • Removing and installing, refer to Removal and Installation .
16. Connector Station
    • Installed location: right A-pillar
    • Loosen the boot on the pillar to disconnect the connector
17. Vehicle Electrical System Control Module -J519-
    • Installed location: under the instrument panel on the driver side; clipped to the relay panel
    • Removing and installing, refer to Removal and Installation /
18. Alarm Horn -H12-
    • Installed location: in the plenum chamber
    • Removing and installing, refer to Removal and Installation .
19. Engine Hood Contact Switch -F266-
    • Installed location: on the latch
    • Removing and Installing, refer to Removal and Installation .
