Engine, Supporting In Its Installed Position: Procedure

WARNING: This page is about a different variant/trim than selected.
CAUTION:

Note the following whenever working inside the engine compartment due to limited space:

  • Route all lines and wires in their original locations.
  • Ensure sufficient clearance to all moving or hot components.
CAUTION:

Danger of causing damage to the coupling element.

  • Do not bend the coupling element more than 10°.
  • Do not stretch the coupling element.
  • Do not damage the wire mesh on the coupling element.

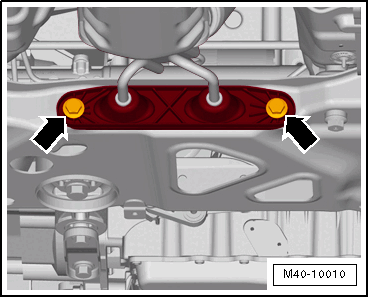

-- Remove the exhaust system suspended mount bolts -arrows- from the subframe.

Fig 1: Identifying Suspended Mount Bolts
GWWM40-10010Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

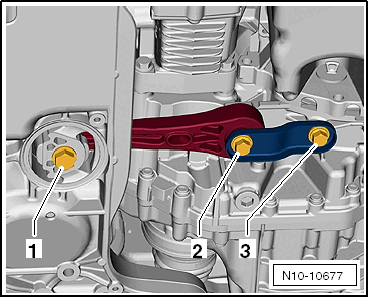

-- Remove the pendulum support to subframe bolt -1-.

Fig 2: Identifying Support Bracket, Pendulum And Bolts
GWWN10-10677Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Then, remove the pendulum support to transmission bolts -2 and 3-.

-- Remove the pendulum support.

-- Remove the air filter housing and the air filter housing bracket. Refer to AIR FILTER HOUSING .

-- Remove the plenum chamber cover. Refer to Removal and Installation .

-- Remove the left and right lock carrier bracket rear bolts -arrows-.

Fig 3: Identifying Left And Right Lock Carrier Bracket Bolts
GWWN10-10645Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the lower mounts from the adapters 10-222 A/28 and replace them with the adapters 10-222 A/28-2.

Fig 4: Identifying Engine Support Bridge Adapter
GWWN10-10633Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -arrows- from the adapters 10-222 A /28-2.

-- Use the bolts -arrows- from the adapters 10-222 A/28-2 to secure the adapters 10-222 A/28 to the lock carrier. Do not use the bolts for the lock carrier brackets.

Fig 5: Identifying Engine Support Adapter And Adapter 10-222 A /28
GWWN10-10644Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolts -arrows- to 8 Nm.

CAUTION:

A second technician is needed to install the engine support bridge 10-222 A to the vehicle in order to prevent the engine support bridge from tipping.

Install the engine support bridge as follows:

Fig 6: Identifying Engine Support Bridge
GWWN10-10643Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Adapter 10-222 A/31-2
  2. Moveable joint T40091/3
  3. Adapter 10-222 A/31-1
  4. Moveable joint T40093/4
  5. Square pipe T40091/1
  6. Adapter 10-222 A/28 with adapter 10-222 A/28-2
  7. Bracket with spindle and hook 10-222 A/10

-- Install moveable joints T40091/3 (-2-) onto the square pipe of the engine support bridge 10-222 A.

-- Install the engine support bridge 10-222 A to the strut towers and have a second technician hold it to prevent it from falling over.

-- Install the moveable joints T40093/4 (-4-) onto the square pipes T40091/1 (-5-).

-- Install the square pipes T40091/1 (-5-) on the left and right sides, through the adapters 10-222 A/28 (-6-) and the moveable joint T40091/3 (-2-).

-- Install the bracket with spindle and hook 10-222 A/10 (-7-) to the right side square pipe T40091/1.

-- Install the rail with holes T40091/2 (-9-) with the mount T40093/5 (-10-) into the moveable joints T40093/4 (-4-).

Fig 7: Identifying Engine Support Bridge
GWWN10-10642Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Adapter 10-222 A/31-2
  2. Moveable joint T40091/3
  3. Adapter 10-222 A/31-1
  4. Moveable joint T40093/4
  5. Square pipe T40091/1
  6. Adapter 10-222 A/28 with adapter 10-222 A/28-2
  7. Bracket with spindle and hook 10-222 A/10
  8. Adapter 10-222 A/7
  9. Rail with holes T40091/2
  10. Mount T40093/5
  11. Spindle 10-222 A/11
  12. Shackle 10-222 A/12

-- Insert the locking pins into the rail with holes T40091/2 (-9-) and secure them with the cotter pins.

-- Tighten all threaded connections on the engine support bridge 10-222 A hand tight. Adjust the height of the engine support bridge 10-222 A parallel over the adapter 10-222 A/28.

-- Lengthen the right bracket with spindle and hook 10-222 A/10 (-7-) using the adapter 10-222 A/7 (-8-).

The hook on the adapter 10-222 A/7 faces downward and will be attached to the cylinder block later.

-- Attach the left spindle 10-222 A/11 (-11-) to the shackle 10-222 A/12 (-12-).

-- Position the spindles and hold the engine and transmission. Do not lift.
