Engine, Securing To The Engine And Transmission Holder: Procedure

WARNING: This page is about a different variant/trim than selected.

-- Separate the transmission from the engine. Refer to ENGINE AND TRANSMISSION, SEPARATING .

-- Install the lifting tackle 3033 as shown and lift the engine using the shop crane - load cap = 700-1200 KGVAS 6100 off of the engine-/gearbox jack V.A.G 1383 A.

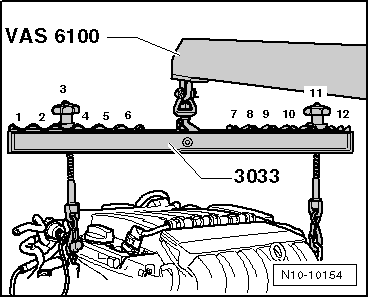

Fig 1: Engaging Engine Sling 3033 & Lifting Engine Using Shop Crane VAS 6100

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Vibration damper side: Position 3.

Flywheel side: Position 11.

Securing the engine to the engine and transmission holder VAS 6095 using a universal mount.

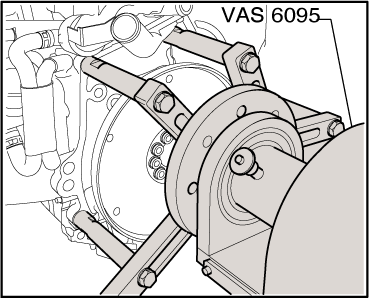

Fig 2: Identifying Engine And Transmission Holder VAS 6095

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Securing the engine to the engine and transmission holder VAS 6095 using the engine support 3269.

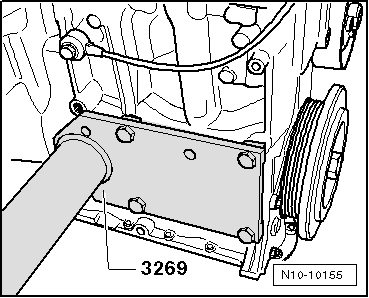

Fig 3: Identifying Engine Support 3269 Tightly Bolted To Cylinder Block

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
