B196D - Power Liftgate Open Direction Full Open Switch Performance: Notes

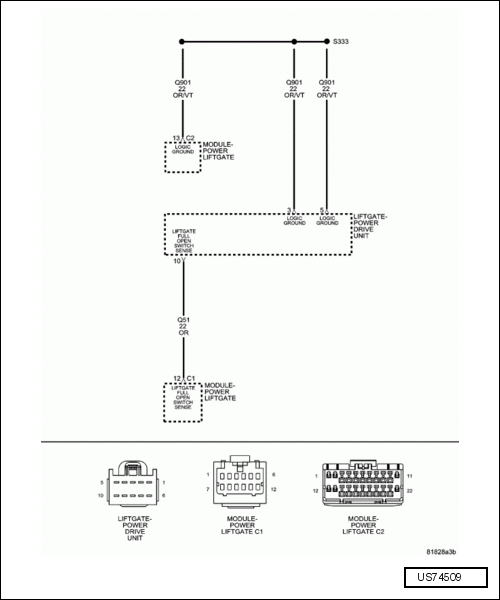

Fig 1: Power Liftgate Open Direction Full Open Switch Performance

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

For a complete wiring diagram, refer to appropriate Wiring Diagram

>>When Monitored:<< During the power liftgate open cycle or liftgate fully closed.
>>Set Condition:<< The full open switch was detected as closed with the liftgate being fully closed or the latch being fully latched. The full open switch was detected as closed before the liftgate was within a few degrees of full open position. The full open switch remained open after approximately reaching 10% of full open position during an open operation. May be triggered by an intermittent full open switch failure.

Possible Causes
Q51 LIFTGATE FULL OPEN SWITCH SENSE CIRCUIT OPEN
Q51 LIFTGATE FULL OPEN SWITCH SENSE CIRCUIT INTERMITTENT SHORT TO GROUND
Q51 LIFTGATE FULL OPEN SWITCH SENSE CIRCUIT SHORT TO GROUND
POWER LIFTGATE DRIVE UNIT
POWER LIFTGATE MODULE

Theory of Operation

The full open switch indicates when the gate is a few degrees from full open position. The switch is closed when the liftgate is fully open and the switch is open when the liftgate is either fully closed and latched or between full open and closed. It can be checked by manually opening and closing the liftgate while monitoring the scan tool.

Test Step 1 - DTC Present

With the scan tool, record and erase DTCs.
Turn the ignition OFF, wait 10 seconds, then turn the ignition ON.
Operate the power liftgate several times if possible.
With the scan tool, read Active DTCs.

Does the scan tool display B196D - Power Liftgate Open Direction Full Open Switch Performance?

Yes

Go to Test Step 2 Test Step 2 - Obstruction Or Sticking Switch

Using the wiring diagram/schematic as a guide, inspect the wiring and connectors for an intermittent condition. Operate the liftgate several times and check for any binding or obstructions.
Perform the Body Verification Test. Refer to BODY VERIFICATION TEST .
