Engine Speed Sensor -G28-: Removing

-- Remove the noise insulation. Refer to Description and Operation .

-- Disconnect the connector from the engine speed sensor and free up the cable.

-- Remove the bolt -2- and then turn the engine speed sensor -1- and remove it.

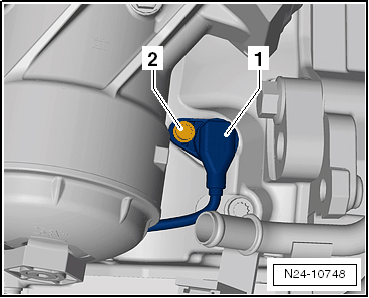

Fig 1: Identifying Bolt And Engine Speed Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
